1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios
MAGNETO SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D013)
5
Despiece
Catálogo de recambios
MOTOR DE ARRANQUE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D012)
por
CABINA SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609A005)

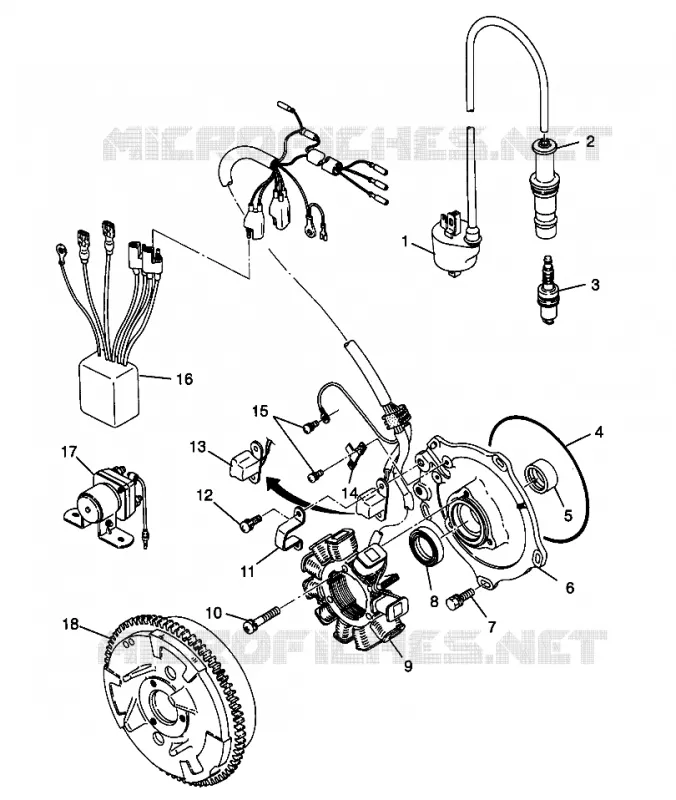

MAGNETO SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D013)
1
Coil Ignition
3085228
237,14€ Precio unitario con IVA
1
Asm. Coil Ignition
3085227
No disponible
2
CAP SPARKPLUG *
3084980
No disponible
3
SPARKPLUG BKR5E(4)
3070175
7,19€ Precio unitario con IVA
4
O-RING
3084978
No disponible
5
BEARING METAL
3084972
No disponible
6
PLATE
3084971
No disponible
6
PLATE ASM. Substituted by 3086859 (Incl. 5 6 8-14)
3084970
410,03€ Precio unitario con IVA
7
BOLT&WASHER ASM.
3081657
No disponible
8
SEAL OIL
3084973
No disponible
9
STATOR Substituted by 3086860
3084974
504,89€ Precio unitario con IVA
10
SCREW&WASHER ASM(10)
3081342
No disponible
11
COVER PULSE Substituted by 3085554
3084975
18,73€ Precio unitario con IVA
12
SCREW&WASHER ASM.
3084976
No disponible
13
COIL PULSER
3085360
No disponible
14
CLAMP
3084977
No disponible
15
SCREW&WASHER ASM(10)
3081256
No disponible
16
CDI SYSTEM Substituted by 3085564
3085382
410,03€ Precio unitario con IVA
17
SWITCH-MAGNETIC Substituted by 3085521 (Incl. 27 28) (Twin ES)
3083211
4011335
76,31€ Precio unitario con IVA
18
FLYWHEEL W/RING GEAR Substituted by 3086857
3084969
472,76€ Precio unitario con IVA
Los esquemas son meramente informativos. En caso de duda, nuestros especialistas están a su disposición para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de seleccionar la cantidad deseada. El precio unitario indicado corresponde a una unidad de cada referencia.
