1
Cilindrada
500
2
Año
1990
3
Acabado
swe-500-sp-s900664
4
Catálogo de recambios

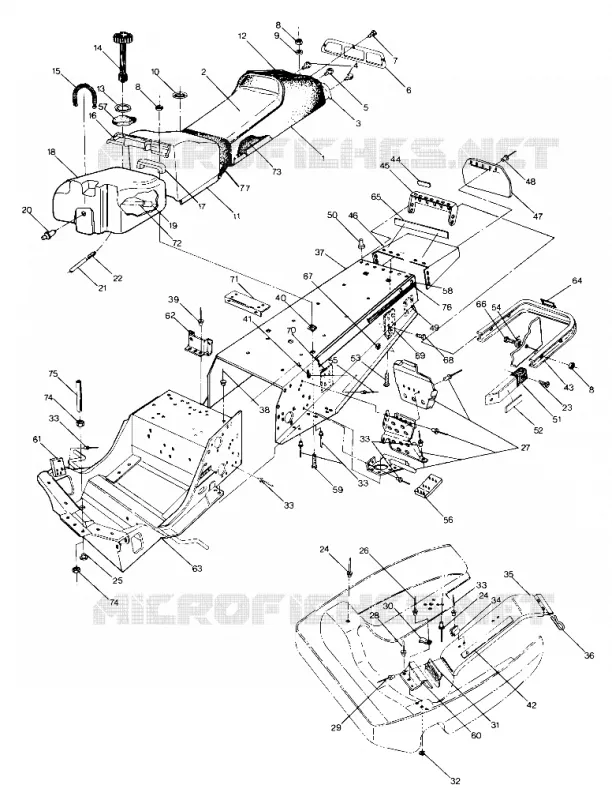

CHASIS AND ASIENTO 500 and 500 Classic Updated 2/90 (4916791679001A)
5
Despiece
Catálogo de recambios
FRENO Y CADENACASE ALL SWEDISH SNOWMOBILES EXCEPT SUPERTRAK WIDETRAK (49187318730005)
por
CAPUCHA 500 and 500 Classic Updated 2/90 (4916791679003A)
CHASIS AND ASIENTO 500 and 500 Classic Updated 2/90 (4916791679001A)
-
DESC NOT_AVAILABLE (500 SKS)
2681459
No disponible
1
SEAT ASM (CLASSIC) Substituted by 2200747
2681424
No disponible
1
SEAT ASM (INDY500) Substituted by 2200747 (Incl. 2-7 12 75) (500 Only)
2681385
No disponible
2
COVER SEAT(INDY500) Substituted by 2200738 (500 Only)
2681386
No disponible
2
COVER SEAT [No Longer Available] (500 SKS)
2681460
No disponible
2
COVER SEAT(CLASSIC) Substituted by 2200738 (500 Classic Only)
2681423
No disponible
3
HOUSING TAILLIGHT
5430425
No disponible
4
BULB TAILLIGHT(10)
4030015
9,36€ Precio unitario con IVA
5
BULB BRAKELIGHT
4030019
No disponible
6
LENS TAILLIGHT
5430423
No disponible
7
SCREW(10)
7511840
No disponible
8
NUT NYLOK
7542122
2,39€ Precio unitario con IVA
9
WASHER-.270X1.25X.060 FL-Y
7558221
4,79€ Precio unitario con IVA
10
GROMMET-GAS TANK
5430575
No disponible
11
COVER TANK (500) (500 Only)
2681426
No disponible
11
COVER TANK(CLASSIC) Substituted by 2200738 (500 Classic Only)
2681425
No disponible
12
BUCKLE&STRAP (Sport 400 600)
2681290
No disponible
13
GASKET-GAS CAP Substituted by 5810513
5810142
5810513
13,12€ Precio unitario con IVA
14
GAUGE GAS Substituted by 2511246
2511149
No disponible
15
SPRING TANK FRONT
7042020
No disponible
16
STRAP GAS TANK Substituted by 5222330-067
5221722
No disponible
17
CUSHION TANK H.D.
5420126
No disponible
18
TANK GAS (Incl. 19-22)
2511150
No disponible
19
FUELPICKUP W/STRAINER
7052037
7052301
23,84€ Precio unitario con IVA
20
FITTING OUTLET DOUBLE
7052023
29,82€ Precio unitario con IVA
21
KIT-TANK VENT
2200190
No disponible
22
VENT FITTING TANK Substituted by 5430579
5430669
3,50€ Precio unitario con IVA
23
SCREW(10)
7511863
No disponible
24
RIVET-POP3/16(.251-.375)AL-LFB
7621457
2,39€ Precio unitario con IVA
25
PLUG
7080288
No disponible
26
RIVET-POP 3/16(.251-.375)-ST-Z
7621402
2,39€ Precio unitario con IVA
27
FOOTREST LH (650) (650 Only)
2200303
No disponible
27
FOOTREST RH (650) [No Longer Available] (650 Only)
2200304
No disponible
27
KIT RH.FOOTREST(SCAND) [No Longer Available]
2200332
No disponible
27
FOOTREST ASM LH
2200250
No disponible
27
FOOTREST ASM RH
2200254
No disponible
28
RIVET(50)
7621452
No disponible
29
RIVET
7621330
2,39€ Precio unitario con IVA
30
CLIP WIRING (10) Substituted by 7080665
4020035
No disponible
31
HINGE
5210728
No disponible
32
WASHER FLAT
7558212
1,81€ Precio unitario con IVA
33
RIVET CH. Q
7621429
2,39€ Precio unitario con IVA
34
CLIP BELT Substituted by 5222769 (400 600)
5220817
5222769
13,12€ Precio unitario con IVA
35
GUARD CLUTCH Substituted by 5240965
5230118
No disponible
36
PIN RETAINING (10)
7080216
No disponible
37
TUNNEL (500 SKS) Substituted by 1011806 (500 SKS Only w/1011694)
1011747
No disponible
37
TUNNEL (400&650) Substituted by 1011804
1011664
No disponible
37
DESC NOT_AVAILABLE (500 SKS)
1011777
No disponible
37
TUNNEL (500) Substituted by 1011808
1011746
No disponible
38
RIVET (MONOBOLT) Substituted by 7661637
7661620
7661637
2,39€ Precio unitario con IVA
40
NUT SPEED
7670021
9,61€ Precio unitario con IVA
41
SNAP-MALE(10)
7080227
No disponible
42
DECAL ENG/CLUTCH [No Longer Available]
7072871
No disponible
43
DESC NOT_AVAILABLE
5224421
No disponible
43
BUMPER REAR Substituted by 5224334-067
5224334
No disponible
43
BUMPER (SKS) Substituted by 5224349-067 (400 SKS & 650 SKS Only)
5224349
No disponible
43
BUMPER R.(N-INDY) Substituted by 5224347-067 (Sport Trail)
5224347
No disponible
44
DECAL TRACK GOLD [No Longer Available] (500 Classic Only)
7072874
No disponible
44
DECAL TRACK Substituted by 7072872
7072132
No disponible
45
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
No disponible
46
PANEL CLOSE-OFF REAR Substituted by 1011694-067 (Trail SKS Only)
1011694
No disponible
47
FLAP SNOW SILVER Substituted by 5410394-1106 (400)
5410394
No disponible
47
FLAP SNOW GOLD Substituted by 5410394
5410392
No disponible
48
POP RIVET(50)
7621418
2,39€ Precio unitario con IVA
49
WEARPLATE TUNNEL (400 & 650)
5222061
No disponible
50
RIVET Substituted by 7661812 (SPORT)
7661818
0,61€ Precio unitario con IVA
51
CAP BUMPER Substituted by 5430930-070 (TRAIL)
5430930
No disponible
52
REFLECTOR RED
2670070
21,68€ Precio unitario con IVA
53
BOLT
7512103
6,38€ Precio unitario con IVA
54
WASHER [INTL]
7558301
2,39€ Precio unitario con IVA
55
RIVET(50)
7621222
No disponible
56
PLATE TUNNEL RH
5220635
No disponible
56
PLATE TUNNEL LH
5220634
No disponible
57
FOAM FILLER
5810201
No disponible
58
DECAL(47.5##)TUNNEL [No Longer Available]
7072078
No disponible
59
SCR-RHCAR-1/4-20X0.75 GR5 ZY3
7512193
4,79€ Precio unitario con IVA
60
BRACKET HINGE Substituted by 5241437
5220406
No disponible
61
SUPT. MUFFLER [No Longer Available]
1011582
No disponible
62
BRACKET Substituted by 5221932-067
5221932
No disponible
63
DESC NOT_AVAILABLE (500 Classic Only)
1011763
No disponible
63
DESC NOT_AVAILABLE (500 Special Only)
1011771
No disponible
63
BULKHEAD (500) Substituted by 1011743-067 (500 Only)
1011743
No disponible
64
DECAL R.BUMPER [No Longer Available] (500 Classic Only)
7072780
No disponible
64
DECAL(36.0##)R.BUMP. [No Longer Available] (500 Only)
7072653
No disponible
65
DECAL SKS BLUE [No Longer Available] (500 SKS Only)
7072819
No disponible
66
BOLT(10)
7512240
No disponible
67
NUT-HEX-3/8-16 A ZTB NYL
7542451
2,39€ Precio unitario con IVA
68
BOLT(10)
7515432
No disponible
69
BRKT R.SUSP LH MTG. Substituted by 1011749-067
1011666
No disponible
69
BRKT R.SUSP RH MTG. Substituted by 1011750-067
1011667
No disponible
70
BRKT. Substituted by 5220542-067
5220542
No disponible
71
BRKT TOOL BOX
5220973
No disponible
72
LINE-BOOST 3/16 ID 85 CM
8450003
8450003-1525
127,91€ Precio unitario con IVA
74
PALNUT(10) (Twin ES)
7670031
No disponible
75
SPACER (500 Classic Only)
5332896
No disponible
76
DECAL TUNNEL STRIPE [No Longer Available] (500 Classic Only)
7072778
No disponible
76
DECAL TUNNEL STRIPE [No Longer Available]
7072777
No disponible
77
KNOB ADJ. Substituted by 2670130
7030007
No disponible
77
STRIP-WEAR (600 600 SE)
5510130
No disponible
77
DESC NOT_AVAILABLE
5222119
No disponible
77
BRACKET-CLUTCH GUARD [No Longer Available]
5223798
No disponible
77
GRABBAR RH Substituted by 1011730-067
1011697
No disponible
77
PLATE BACKING Substituted by 5211122-067
5211122
No disponible
77
DESC NOT_AVAILABLE (500 SP)
5430761
No disponible
77
COVER TANK (SP) Substituted by 2200741 (500 SP)
2681495
No disponible
77
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
No disponible
77
REFLECTOR
5430781
No disponible
77
BRACKET HITCH
5220941
No disponible
77
HARNESS-TAILLIGHT Substituted by 2460399
2460226
No disponible
77
BOX TOOL (2-UP SEAT) Substituted by 5431345
5430925
No disponible
77
SEAT ASM (500SP) Substituted by 2200751 (500 SP)
2681493
No disponible
77
COVER SEAT (2-UP) [No Longer Available] (500 SKS)
2681365
No disponible
77
GRABBAR LH Substituted by 1011729-067
1011696
No disponible
77
PLATE HITCH MOUNT Substituted by 5220942-067
5220942
No disponible
77
COVER SEAT (SP) Substituted by 2200741 (500 SP)
2681494
No disponible
Los esquemas son meramente informativos. En caso de duda, nuestros especialistas están a su disposición para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de seleccionar la cantidad deseada. El precio unitario indicado corresponde a una unidad de cada referencia.

Otras piezas para SWE 500 SP - S900664

SUSPENSIÓN DELANTERA AND ESQUÍ 500 AND 500 CLASSIC UPDATED 2/90 (4916791679007A)

SUSPENSIÓN DELANTERA AND ESQUÍ 500 AND 500 CLASSIC UPDATED 2/90 (4916791679007A)

para SWE 500 SP - S900664 a partir de 1990

GOBIERNO 500 and 500 Classic (4916791679009A)

GOBIERNO 500 and 500 Classic (4916791679009A)

para SWE 500 SP - S900664 a partir de 1990

accionado de embrague 500 and 500 Classic (4916791679011A)

accionado de embrague 500 and 500 Classic (4916791679011A)

para SWE 500 SP - S900664 a partir de 1990

Embrague 500 and 500 Classic Updated 2/90 (4916791679012A)

Embrague 500 and 500 Classic Updated 2/90 (4916791679012A)

para SWE 500 SP - S900664 a partir de 1990

ELECTRIC START COMPONENTS 500 Classic (4916791679020A)

ELECTRIC START COMPONENTS 500 Classic (4916791679020A)

para SWE 500 SP - S900664 a partir de 1990

CAJA DEL CIGÜEÑAL 500 and 500 Classic (4916791679023A)

CAJA DEL CIGÜEÑAL 500 and 500 Classic (4916791679023A)

para SWE 500 SP - S900664 a partir de 1990

CILINDRO 500 AND 500 CLASSIC (4916791679024A)

CILINDRO 500 AND 500 CLASSIC (4916791679024A)

para SWE 500 SP - S900664 a partir de 1990

BOMBA DE ACEITE 500 and 500 Classic (4916791679029A)

BOMBA DE ACEITE 500 and 500 Classic (4916791679029A)

para SWE 500 SP - S900664 a partir de 1990

BOMBA DE COMBUSTIBLE 500 and 500 Classic (4916791679030A)

BOMBA DE COMBUSTIBLE 500 and 500 Classic (4916791679030A)

para SWE 500 SP - S900664 a partir de 1990

CARBURADOR 500 AND 500 CLASSIC (4916791679031A)

CARBURADOR 500 AND 500 CLASSIC (4916791679031A)

para SWE 500 SP - S900664 a partir de 1990

MOTOR DE ARRANQUE 500 Classic (4916791679032A)

MOTOR DE ARRANQUE 500 Classic (4916791679032A)

para SWE 500 SP - S900664 a partir de 1990

MONTAJE CILINDRO MAESTRO All Swedish Snowmobiles (49187318730007)

MONTAJE CILINDRO MAESTRO All Swedish Snowmobiles (49187318730007)

para SWE 500 SP - S900664 a partir de 1990

FRENO Y CADENACASE ALL SWEDISH SNOWMOBILES EXCEPT SUPERTRAK WIDETRAK (49187318730005)

FRENO Y CADENACASE ALL SWEDISH SNOWMOBILES EXCEPT SUPERTRAK WIDETRAK (49187318730005)

para SWE 500 SP - S900664 a partir de 1990

CHASIS AND ASIENTO 500 and 500 Classic Updated 2/90 (4916791679001A)

CHASIS AND ASIENTO 500 and 500 Classic Updated 2/90 (4916791679001A)

para SWE 500 SP - S900664 a partir de 1990

CAPUCHA 500 and 500 Classic Updated 2/90 (4916791679003A)

CAPUCHA 500 and 500 Classic Updated 2/90 (4916791679003A)

para SWE 500 SP - S900664 a partir de 1990

NOSE PAN 500 and 500 Classic Updated 2/90 (4916791679005A)

NOSE PAN 500 and 500 Classic Updated 2/90 (4916791679005A)

para SWE 500 SP - S900664 a partir de 1990

CONSOLA 500 and 500 Classic (4916791679006A)

CONSOLA 500 and 500 Classic (4916791679006A)

para SWE 500 SP - S900664 a partir de 1990

SUSPENSIÓN 500 AND 500 CLASSIC UPDATED 2/90 (4916791679015A)

SUSPENSIÓN 500 AND 500 CLASSIC UPDATED 2/90 (4916791679015A)

para SWE 500 SP - S900664 a partir de 1990

MONTAJE DEL MOTOR 500 and 500 Classic Updated 2/90 (4916791679017A)

MONTAJE DEL MOTOR 500 and 500 Classic Updated 2/90 (4916791679017A)

para SWE 500 SP - S900664 a partir de 1990

SISTEMA DE REFRIGERACIÓN 500 and 500 Classic Updated 2/90 (4916791679019A)

SISTEMA DE REFRIGERACIÓN 500 and 500 Classic Updated 2/90 (4916791679019A)

para SWE 500 SP - S900664 a partir de 1990

PISTÓN AND CIGUEÑAL 500 AND 500 CLASSIC (4916791679025A)

PISTÓN AND CIGUEÑAL 500 AND 500 CLASSIC (4916791679025A)

para SWE 500 SP - S900664 a partir de 1990

MAGNETO 500 AND 500 CLASSIC (4916791679026A)

MAGNETO 500 AND 500 CLASSIC (4916791679026A)

para SWE 500 SP - S900664 a partir de 1990

ARRANQUE DE RETROCESO 500 and 500 Classic (4916791679027A)

ARRANQUE DE RETROCESO 500 and 500 Classic (4916791679027A)

para SWE 500 SP - S900664 a partir de 1990

BOMBA DE AGUA 500 and 500 Classic (4916791679028A)

BOMBA DE AGUA 500 and 500 Classic (4916791679028A)

para SWE 500 SP - S900664 a partir de 1990

POLARIS SWE 500 SP - S900664 1990

SWE 500 SP - S900664

SWE 500 SP - S900664

Modelo : OTHERS

Cilindrada : 500

Año : 1990

Piezas nuevas y originales del fabricante
Envíos internacionales
Precio oficial POLARIS
Un equipo de expertos a su servicio
Pago seguro
A su lado desde 2001
Opiniones de nuestros clientes
4.2 /5
1764 opiniones
Ver todas las opiniones
Catálogo de piezas de recambio para todas las marcas
