1
Cilindrada
500
2
Año
1996
3
Acabado
SPORTSMAN 500 - W969244
4
Catálogo de recambios

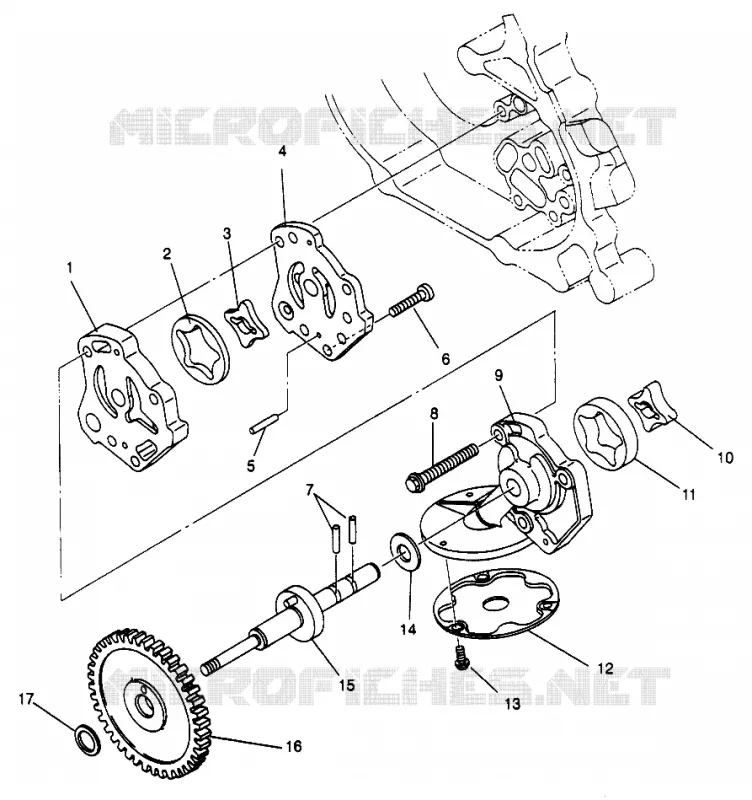

BOMBA DE ACEITE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D007)
5
Despiece
Catálogo de recambios
BOMBA DE COMBUSTIBLE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D006)
por
FILTRO DE ACEITE SPORTSMAN 500 W969244 (4936093609D008)
BOMBA DE ACEITE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D007)
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
17
17
17
17
17
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
17
17
17
17
17
1
CASE #2 OILPUMP
3084946
No disponible
2
ROTOR OUTER FEED (Feed)
3084949
No disponible
3
ROTOR INNER FEED (Feed)
3084948
No disponible
4
PUMP OIL * (Incl. 1-8 10-15)
3084944
428,39€ Precio unitario con IVA
4
CASE #1 OILPUMP
3084945
159,89€ Precio unitario con IVA
5
PIN DOWEL
3084955
No disponible
6
SCREW
3083407
No disponible
7
PIN DOWEL
3084954
No disponible
8
BOLT&WASHER ASM.
3084962
No disponible
9
CASE #3 OILPUMP
3084947
143,89€ Precio unitario con IVA
10
ROTOR INNER SCAV. (Scav)
3084950
No disponible
11
ROTOR OUTER
3090307
No disponible
12
STRAINER UNIT OIL
3084956
No disponible
13
SCREW & WASHER(10)
3084205
No disponible
14
WASHER(10)
3084953
No disponible
15
SHAFT PUMP *
3084952
No disponible
16
GEAR 2 PUMP *
3084958
No disponible
17
SPACER (0.8)
3084959
No disponible
17
SPACER (1.0)
3084960
No disponible
17
SPACER (1.2)
3084961
No disponible

En esta página encontrará el esquema detallado BOMBA DE ACEITE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D007) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
