1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

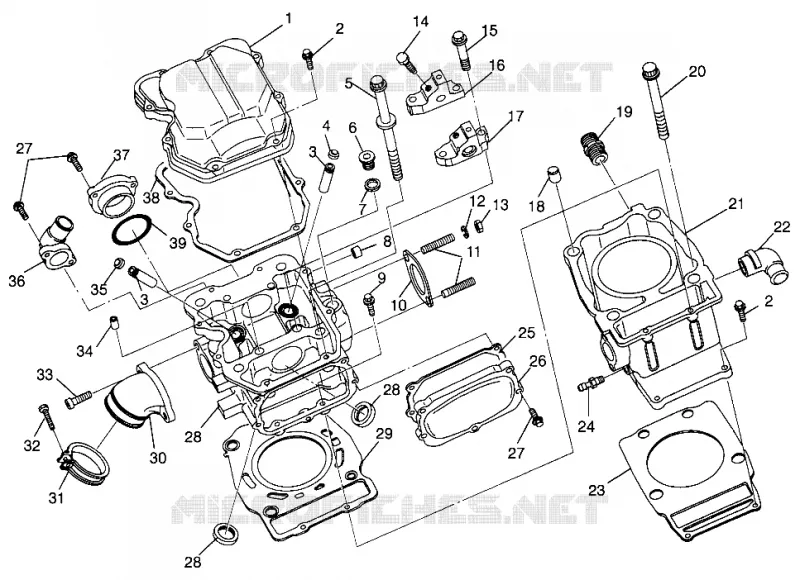

CILINDRO SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D003)
5
Despiece
Catálogo de recambios
CAJA DEL CIGÜEÑAL SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D002)
por
CIGUEÑAL AND PISTÓN SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S9692 (4936093609D004)
CILINDRO SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D003)
1
COVER ROCKER
3085073
No disponible
2
Bolt Flange
3084874
No disponible
3
GUIDE VALVE
3084994
No disponible
4
SEAL EXHAUST VALVE
3084859
No disponible
5
BOLT
3084875
No disponible
6
PLUG
3084860
No disponible
7
GASKET
3084861
No disponible
8
PLUG BLIND
3084862
No disponible
9
BOLT FLANGE Substituted by 3086781
3084215
2,54€ Precio unitario con IVA
10
GASKET EXH.
3085075
No disponible
11
STUD (10)
3080016
No disponible
12
WASHER LOCK (10)
3080530
No disponible
13
NUT(10)
3080285
1,91€ Precio unitario con IVA
14
BOLT
3084880
7,67€ Precio unitario con IVA
15
BOLT
3084876
No disponible
16
SUPPORT VALVE ROCKER (PTO)
3084864
No disponible
17
SUPPORT VALVE ROCKER (MAG)
3084863
No disponible
18
PIN STRAIGHT
3084838
3,50€ Precio unitario con IVA
19
UNION OIL PUMP
3084849
22,73€ Precio unitario con IVA
20
BOLT FLANGE
3084873
No disponible
21
CYLINDER Substituted by 3085526 (Incl. 22)
3085369
442,16€ Precio unitario con IVA
22
PIPE 2 ELBOW Substituted by 3086747
3084130
No disponible
23
GASKET CYLINDER
3085370
24,56€ Precio unitario con IVA
24
UNION (BREATHER)
3084850
No disponible
25
GASKET Substituted by 3086200
3084869
2,06€ Precio unitario con IVA
26
COVER CAMSHAFT
3084868
74,18€ Precio unitario con IVA
27
BOLT FLANGE(10)
3084877
No disponible
28
HEAD CYLINDER Substituted by 3085527 (Incl. 7-9 17-20 23)
3085071
734,87€ Precio unitario con IVA
29
GASKET HEAD
3085371
No disponible
30
ADAPTER
3084879
No disponible
31
ASM. BAND ADAPTOR [INCL. 9]
3083166
7082340
29,82€ Precio unitario con IVA
32
SCREW
3081497
No disponible
33
BOLT SOCKET HEAD
3081330
No disponible
34
PIN STRAIGHT
3084857
No disponible
35
SEAL INTAKE VALVE
3084858
No disponible
36
ADAPTER (WATER OUT) Substituted by 3084870
3085072
60,76€ Precio unitario con IVA
37
ADAPTER CAMSHAFT
3084866
No disponible
38
GASKET (R.COVER)
3085074
No disponible
39
O-RING
3084867
No disponible

En esta página encontrará el esquema detallado CILINDRO SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D003) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
