TREN, FRONT GEARCASE PARA SPORTSMAN 570 EPS ZUG TRACTOR AGRI EDITION DE 2024

DRIVE TRAIN, TRANSMISION DELANTERA SHAFT

TREN, FRONT GEARCASE MOUNTING

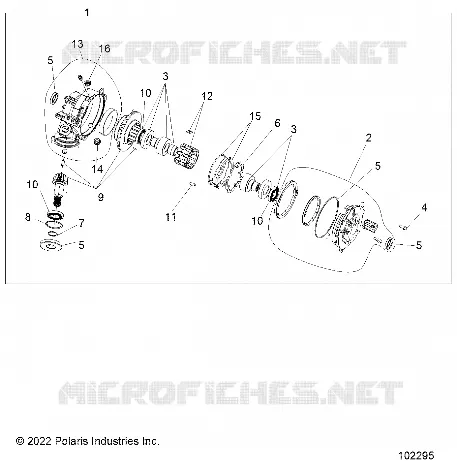

TREN, FRONT GEARCASE

1

ASM. GEARCASE FRONT 12 POCKET [INCL. ALL]

1337140

2 699,39€ Precio unitario con IVA

2

ASM. COVER OUTPUT [INCL. CONNECTOR ASSEMBLY OUTPUT COVER PLASTIC CLIP THRUST BUTTON ASM. 4WD COIL THRUST PLATE O-RING GROMMET SCREW OIL SEAL DOWEL PINS HEAT SHRINK TUBING]

3236663

851,28€ Precio unitario con IVA

3

KIT OUTPUT HUB [INCL. HUB ASM. FEMALE HUB ASM. MALE]

3236672

771,24€ Precio unitario con IVA

4

COVER-FASTENERS [INCL. SCREWS]

3235469

20,27€ Precio unitario con IVA

5

KIT SEAL REPAIR [INCL. ALL SEALS]

3236669

103,56€ Precio unitario con IVA

6

PLATE-4WD ARMATURE

3236048

198,89€ Precio unitario con IVA

7

WRENCH-8MMX10MM OPEN END

No disponible

8

WRENCH-8MMX10MM OPEN END

No disponible

9

K- GEAR HOUSING PINION GEAR AND RING RETAINERS

3239541

1 488,20€ Precio unitario con IVA

10

BEARING

3234390

53,68€ Precio unitario con IVA

11

K-CLUTCH ROLLS W/COMPLETE SET OF ROLLER

3235624

14,09€ Precio unitario con IVA

12

ASM-ROLL CAGE [INCL. CAGE AND COMPLETE SET OF CLIPS]

3235625

305,99€ Precio unitario con IVA

13

ASM. GEARCASE [INCL. GEARCASE BUSHING GARLOCK BEARING FILL PLUG VENT TUBE OIL SEAL]

3236677

894,94€ Precio unitario con IVA

14

ASM. DRAIN PLUG MAGNETIC

3234412

71,58€ Precio unitario con IVA

15

KIT-TORSION SPRING AND RETAINER [INCLUDES 22 & 26]

3235712

69,98€ Precio unitario con IVA

16

PLUG OIL FILL

3234414

61,24€ Precio unitario con IVA

Los esquemas son meramente informativos. En caso de duda, nuestros especialistas están a su disposición para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de seleccionar la cantidad deseada. El precio unitario indicado corresponde a una unidad de cada referencia.
