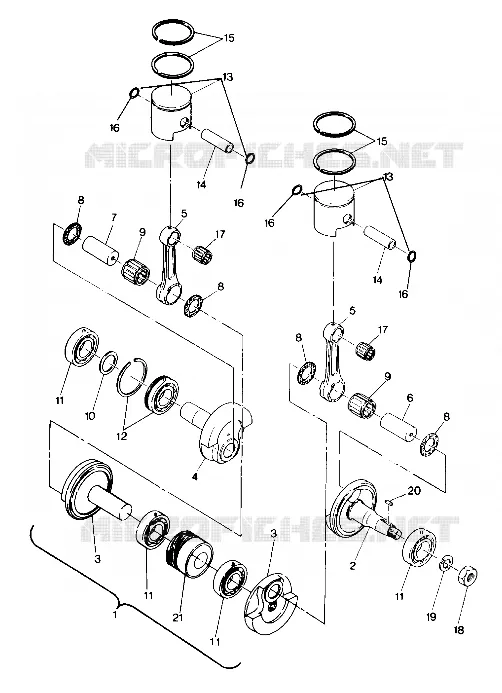

PISTÓN AND CIGUEÑAL 500 AND 500 CLASSIC (4916791679025A)
1
CRANKSHAFT ASM. Substituted by 3084360 (Incl. 2-11 21)
3083794
No disponible
2
CRANKSHAFT #1
3083362
No disponible
3
CRANKSHAFT 2 (Incl. 6)
3083713
No disponible
4
CRANKSHAFT #3 Substituted by 3084357
3083364
No disponible
5
ROD-CONNECTING
3083252
No disponible
6
PIN CRANK
3083233
No disponible
7
CRANK PIN 2
3083456
No disponible
8
SPACER CRANK PIN
3083277
No disponible
9
BEARING-LARGE END Substituted by 3085628
3083255
No disponible
10
SPACER CRANKSHAFT
3080447
No disponible
11
BEARING BALL Substituted by 3084586
3083480
No disponible
12
BALL BEARING C-4
3083714
No disponible
13
PISTON .010 O/S (.010 Over) (Incl. 16)
3083902
No disponible
13
PISTON (Standard) (Incl. 16)
3083901
No disponible
13
PISTON .020 O/S (.020 Over) (Incl. 16)
3083903
No disponible
14
PIN PISTON
3083838
405,44€ Precio unitario con IVA
15
RING PISTON .010 O/S (.010 Over)
3083970
No disponible
15
RING PISTON .020 O/S (.020 Over)
3083971
No disponible
15
RING PISTON STD. (Standard)
3083963
No disponible
16
CLIP PISTON PIN (10)
3083839
No disponible
17
BEARING END SMALL
3083216
No disponible
18
NUT
3083093
No disponible
19
WASHER SPRING
3083094
No disponible
20
KEY
3081447
No disponible
21
GEAR DRIVE OIL PUMP
3083782
No disponible
Los esquemas son meramente informativos. En caso de duda, nuestros especialistas están a su disposición para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de seleccionar la cantidad deseada. El precio unitario indicado corresponde a una unidad de cada referencia.
