1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

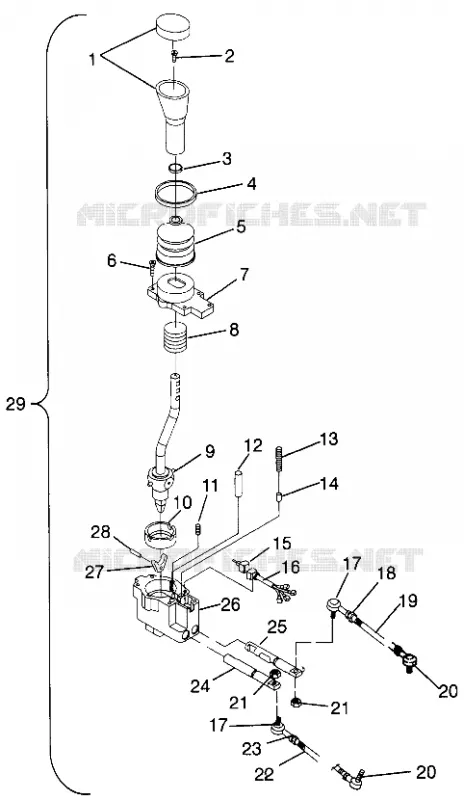

SELECTOR DEL TREN SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C012)
5
Despiece
Catálogo de recambios
KIT DE HERRAMIENTA SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C011)
por
CAJA DE ENGRANAJES (Internal Components) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609C013)
SELECTOR DEL TREN SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C012)
1
KNOB ASM HI/LO/REV. Substituted by 3233195-070
3233195
19,93€ Precio unitario con IVA
2
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
8,23€ Precio unitario con IVA
3
STRAP WIRE
3233131
No disponible
4
CLAMP
3233132
No disponible
5
BOOT GEAR SELECTOR
3233368
No disponible
6
SCREW Substituted by 3233498
3233085
5,10€ Precio unitario con IVA
7
COVER GEARSELECT 5-BOLT
3233204
No disponible
8
SPRING HOLDING
3233158
No disponible
9
HANDLE SUBASM (GS MAGNUM)
3233227
No disponible
10
CUP BEARING
3233063
No disponible
11
SPRING CENTERING
3233083
No disponible
12
PIN STOP
3233062
No disponible
13
SPRING DETENT
3233069
No disponible
14
BULLET DETENT
3233060
No disponible
15
SWITCH GEARSELECT DATA Substituted by 3233209
3233208
76,31€ Precio unitario con IVA
16
STRAP WIRE
3233090
No disponible
17
ROD END RH 6MM.
7061014
No disponible
18
NUT(10)
7546702
No disponible
19
Rod Shift Linkage Low
5020824
No disponible
20
ROD END LH 6MM.
7061013
76,31€ Precio unitario con IVA
21
Nut FLEXLOC
7546707
7546703
2,39€ Precio unitario con IVA
22
ROD-SHIFT LINKAGE HI RANGE
5020823
119,90€ Precio unitario con IVA
23
NUT-M6X1 HX R.HAND-Y
7546701
7,98€ Precio unitario con IVA
24
SLIDE ASM LOW
3233312
No disponible
25
SLIDE ASM HIGH/REV
3233311
No disponible
26
BODY GEAR SELECTOR
3233343
No disponible
27
INTERLOCK BUTTERFLY
3233084
No disponible
28
PIN INTERLOCK
3233070
No disponible
29
SELECTOR ASM GEAR (500) (Incl. 1-25 24-28)
1341176
No disponible

En esta página encontrará el esquema detallado SELECTOR DEL TREN SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C012) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
