1
Cilindrada
0
2
Año
1998
3
Acabado
TRAIL TOURING - 0982362
4
Catálogo de recambios
CADENACASE TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231B008)
5
Despiece
Catálogo de recambios
GOBIERNO TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231B007)
por
TREN TRAIL TOURING 0982362 and EUROPEAN TRAIL TOURING E982362 (4942314231B009)

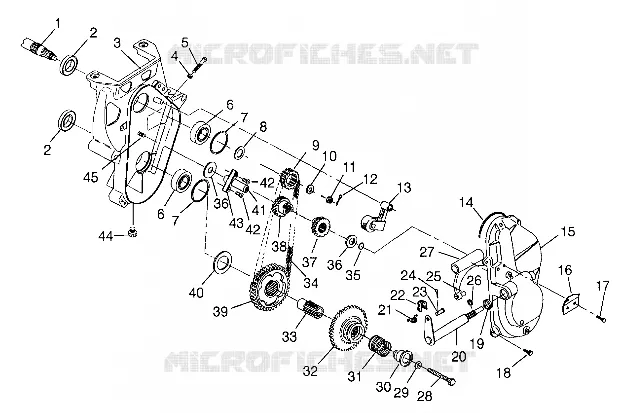

CADENACASE TRAIL TOURING 0982362 AND EUROPEAN TRAIL TOURING E982362 (4942314231B008)
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
No disponible
2
SEAL OIL
3610030
No disponible
3
CHAINCASE-W/RATCHET MNT
5131568
No disponible
4
NUT-3/8-16-Y
7542404
3,18€ Precio unitario con IVA
5
SCREW(10)
7515551
No disponible
6
BEARING BALL
3514309
No disponible
7
RING RETAINING
7718406
10,98€ Precio unitario con IVA
8
WASHER-1.000X1.254X.023-Z
7555917
4,79€ Precio unitario con IVA
9
SPKT 20T 3/4W 15T SPL HYVO Substituted by 2900004
3221087
No disponible
10
WASHER SPRING
7571620
12,36€ Precio unitario con IVA
11
NUT
7542811
No disponible
12
PIN COTTER
7661401
1,81€ Precio unitario con IVA
13
BLOCK TIGHTENER [No Longer Available]
5630122
No disponible
13
TIGHTENER ASM GEARCASE Substituted by 1332213
1332096
No disponible
13
WHEEL C/C IDLER
5630123
No disponible
13
BEARING
3553002
No disponible
13
WASHER THRUST(10)
7558702
3,18€ Precio unitario con IVA
13
PIN CHAIN TIGHTENER
7662210
No disponible
14
GASKET-CHAINCASE
5410277
No disponible
15
COVER CHAINCASE REV.
5131753
No disponible
16
BRKT CABLE MOUNT
5222502067
No disponible
17
SCR-1/4-20X5/8 TAP/R-Y
7517386
2,39€ Precio unitario con IVA
18
SCR-1/4-20X1 1/4-TRIRD HX WH-Y
7512242
4,79€ Precio unitario con IVA
19
SEAL OIL
3610029
No disponible
20
SHAFT SHIFT
1341093067
No disponible
21
SPRING REV.CABLE TENSION
7042044
No disponible
22
CLEVIS
5222606
No disponible
23
PIN-CLEVIS 1/4X5/8 - Z
7661830
7,98€ Precio unitario con IVA
24
PIN-3/32X3/4-COTTER-Y
7661205
1,81€ Precio unitario con IVA
25
PIN SHIFT FORK(10)
7661826
No disponible
26
RING RETAINER(10)
7710415
No disponible
27
KIT SHIFT FORK/SHAFT (Incl. 29 35)
2200363
No disponible
27
FORK SHIFT
5130805
No disponible
28
SCREW NYLOK(10)
7515348
No disponible
29
WASHER-5/16 SPRING LK-MED-Y
7552901
2,39€ Precio unitario con IVA
30
RETAINER DRIVE COUPLER
5130727
No disponible
31
SPRING COMPRESSION Substituted by 7041887
7041309
No disponible
32
GEAR ASM REVERSE Substituted by 1341362
1341121
No disponible
33
COUPLER DRIVE
5130720
No disponible
34
CHAIN 66P 3/4W HYVO Substituted by 3221113
3224071
No disponible
35
O RING
5410589
No disponible
36
WASHER THRUST(10)
7555877
No disponible
37
BEARING NEEDLE
3554508
No disponible
37
GEAR SPUR PINION
1341075
No disponible
38
SPROCKET PINION
1341241
No disponible
39
SPKT 40T 3/4W REV HYVO Substituted by 1341227
1341224
No disponible
40
WASHER REVERSE(10)
7555871
No disponible
41
SHAFT PINION Substituted by 5131770
5130728
No disponible
42
SCREW(10) (Chain Retention Bracket)
7512019
No disponible
43
BRKT CHAIN RETENTION
5222298
No disponible
44
PLUG
7052115
9,61€ Precio unitario con IVA
45
BOLT(10)
7515477
No disponible
Los esquemas son meramente informativos. En caso de duda, nuestros especialistas están a su disposición para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de seleccionar la cantidad deseada. El precio unitario indicado corresponde a una unidad de cada referencia.
