SUSPENSION, SHOCK TRASERO PARA RZR XP 4 TURBO INTL DE 2017

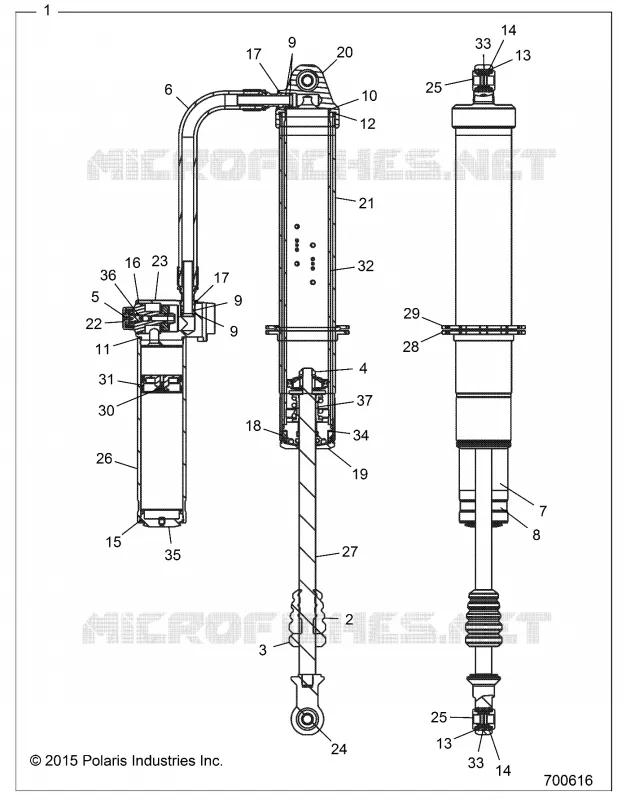

SUSPENSION, SHOCK TRASERO

1

SHOCK-REAR INTBYPASS MP

7044424

No disponible

1

Plate: Back-Up [0.875 OD X 0.503 ID X 0.100 TH]

1500841

No disponible

1

PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH Ã˜ 0.620 SHAFT]

1500470

No disponible

2

Bumper: B/O [Ã˜ 0.620 Shaft 2.350 TLG] MCU

1500577

52,48€ Precio unitario con IVA

3

BUMPER BLACK

1500866

61,24€ Precio unitario con IVA

4

Fastener Standard: Nut Lock [1/2-20 X 0.313 TLG]

1500472

35,78€ Precio unitario con IVA

5

SCREW

1501011

20,27€ Precio unitario con IVA

6

Hose: (T) -10 .625# ID [30.00 TLG] Quick Connec

1501066

221,84€ Precio unitario con IVA

7

Decal: Reservoir [7.63 X 7.50] Internal Bypass

1501067

No disponible

8

Decal: Band [.45 X 7.63] Performance Series

1501046

No disponible

9

Seals: O-Ring [(-016) .070 C.S. X 0.614 ID] Standard N-70 Static

1501068

13,73€ Precio unitario con IVA

10

SEALS:O-RING [(-033) .070 C.S. X 2.364 ID] STANDARD N-70 STATIC

1501069

13,73€ Precio unitario con IVA

11

SEALS:O-RING [(-139) .103 C.S. X 2.175 ID] STANDARD N-70 STATIC

1501048

13,73€ Precio unitario con IVA

12

SEALS:O-RING [(-150) .103 C.S. X 2.862 ID] STANDARD N-70 STATIC

1501070

No disponible

13

SEALS:O-RING [(-315) .210 C.S. X .787 ID] STANDARD N-70 STATIC

1501050

13,04€ Precio unitario con IVA

14

RETAINING RING: SNAP [-118] STEEL GOLD ZINC: PH 15-7 MO BASIC INTERNAL

1501051

No disponible

15

WIRE RETAINING RING

1500960

7,02€ Precio unitario con IVA

16

RETAINING RING: WIRE [0.062 CS X 1.690 INSTALLED OD] SS

1501052

26,23€ Precio unitario con IVA

17

Retaining Ring: Wire [Ã˜ 2.750 ID X Ã˜.063 Wire] 302 SS

1501085

No disponible

18

Retaining Ring: Wire [Ã˜ 0.787 ID X Ã˜.063 Wire] 302 SS

1501086

No disponible

19

Bearing Cap: [Ã˜ 2.750 Bore .Ã˜ 0.875 Shaft] No Scraper Press-in Clear

1501071

No disponible

20

Body Cap: (T) Remote Reservoir Internal Bypass Forging [Ã˜ 3.000 Body 3.000-2

1501072

No disponible

21

BODY OUTER 17.8 TLG

1501173

No disponible

22

Damping Adjust Part: Low Speed Knob [Ã˜ 1.200 OD .530 TLG] Nylon Black213-01-355

1501057

No disponible

23

Damping Adjust Part: CD Housing [Ã˜ 2.250 Bore] Remote Reservoir

1501074

No disponible

24

EYELET

1501174

168,29€ Precio unitario con IVA

25

EYELET PARTS: (T) REDUCER [0.560 TLG .476 THRU HOLE] COM 10 SPHERICAL SLIP FI

1501076

52,48€ Precio unitario con IVA

26

RESEVOIR 10.0 TLG BLK

1501175

No disponible

27

SHAFT .875 X 17.1

1501176

No disponible

28

Spring Hardware: Preload Ring [3.250 OD X 0.515 TLG 2.080-14 Stub Acme ID] Low

1501079

No disponible

29

Spring Hardware: Preload Ring Back Up [4.50 OD X .280 TLG 3.0-14 Stub Acme] Blk

1501080

No disponible

30

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE COMPLETE

1500161

27,98€ Precio unitario con IVA

31

PISTON ASSEMBLY: FLOATING [Ã˜2.25 BORE] W/ STD. TEMP O-RING MAX VOL. BLEED AND

1501060

No disponible

32

INTERNAL BYPASS 2PAD

1501177

No disponible

33

BEARING: SPHERICAL [Ã˜ 0.625 BORE X Ã˜ 1.1875 OD] COM 10 BK LINER CCVI

1501044

81,76€ Precio unitario con IVA

34

Asm. Seal Head

1501094

198,89€ Precio unitario con IVA

35

RESERVOIR END CAP ASSEMBLY: [Ã˜ 2.250 BORE .940 TLG] PELLET FILL ALUMINUM BLAC

1501063

183,59€ Precio unitario con IVA

36

Adjuster Damping LCS

1501180

No disponible

37

Spring Hardware Assembly: Negative Spring Guide Ã˜ 0.875 Shaft [300 lbs/in]

1501083

No disponible

Los esquemas son meramente informativos. En caso de duda, nuestros especialistas están a su disposición para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de seleccionar la cantidad deseada. El precio unitario indicado corresponde a una unidad de cada referencia.
