ENGINE, TURBO ASSEMBLY para PATRIOT BOOST RMK PRO 165/163 SLASH de 2022

ENGINE, TOMA DE AIRE SYSTEM, BOOST

BOMBA DE ACEITE ASM.

ENGINE, TURBO ASSEMBLY

-

ASM-TURBO W/ OIL LINE INCLUDES ALL

1206259

No disponible

-

K-TURBO CHRA SVC REBUILD

2209232

No disponible

1

K-BOLTS COMPRESSOR HOUSING INCLUDES 6 BOLTS

2209229

No disponible

2

K-PLATES COMPRESSOR HOUSING INCLUDES 4 PLATES

2209231

No disponible

3

O-RING COMPRESSOR HOUSING

5417969

No disponible

4

RING-SNAP COMPRESSOR HOUSING

7718428

No disponible

5

SCREW-OIL LINE MOUNT

3024034

No disponible

6

K-FITTING COOLANT W/ O-RING

2209228

No disponible

7

RING-CRUSH TURBINE HOUSING

5511088

No disponible

8

K-BOLTS TURBINE HOUSING INCLUDES 6 BOLTS

2209254

No disponible

9

K-PLATES TURBINE HOUSING

2209230

No disponible

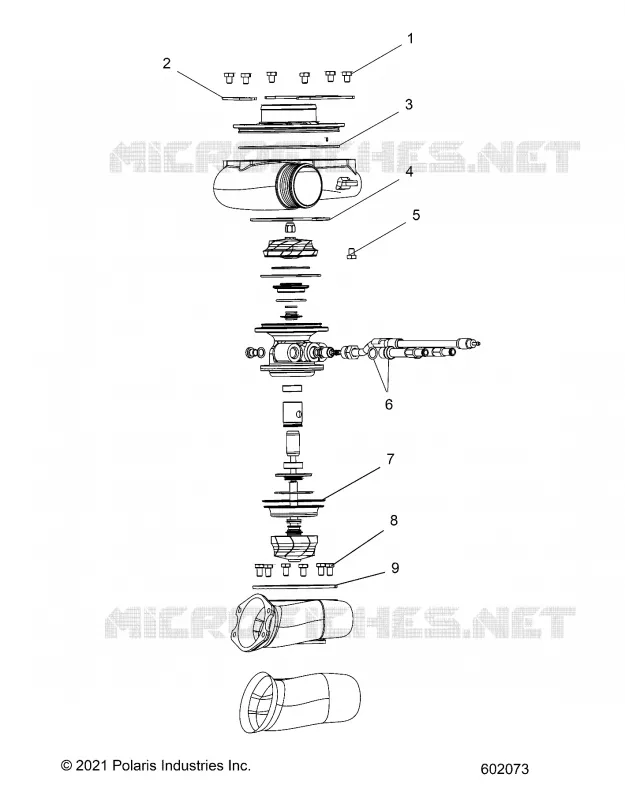

En esta página encontrará el esquema detallado :label POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.

Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
