1
Cilindrada
700
2
Año
1996
3
Acabado
HURRICANE - B964466
4
Catálogo de recambios

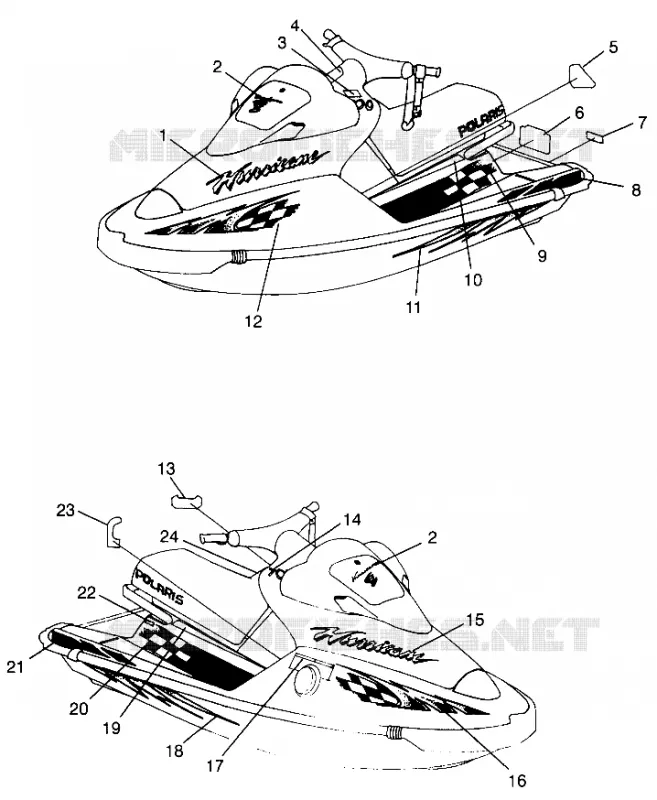

ETIQUETAS HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573A008)
5
Despiece
Catálogo de recambios
FRENTE COMPARTIMIENTO DE ALMACENAMIENTO HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573A007)
por
GASOLINA TANK HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573A009)
ETIQUETAS HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573A008)
-
-
-
KIT DECAL 96 HURRICANE (Incl. 1-24)
2200801
No disponible
1
DECAL LH #HURRICANE#
7075566
No disponible
2
DECAL HURRICANE LOGO.
7075678
No disponible
3
LABEL #U.S.A.#
7073024
No disponible
4
DECAL MFD INSTRUCT.
7075405
No disponible
5
DECAL COASTGUARD EXEMPTION
7075704
No disponible
6
DECAL WARN./INST REAR
7075702
No disponible
7
DECAL CAPSIZE CAUTION
7073865
No disponible
8
DECAL LH RUBRAIL TOP
7075572
No disponible
9
DECAL LH SIDE WALL
7075570
No disponible
10
DECAL LH GRABHANDLE
7075708
No disponible
11
DECAL LH RUBRAIL BTM.
7075574
No disponible
12
DECAL LH FRONT DECK
7075568
No disponible
13
DECAL WARN.GENERAL/PASS
7075733
No disponible
14
DECAL #700#
7075565
No disponible
15
DECAL RH #HURRICANE#
7075567
No disponible
16
DECAL RH FRONT DECK
7075569
No disponible
17
DECAL WARNING REF.
7073466
No disponible
18
DECAL RH RUBRAIL BTM.
7075575
No disponible
19
DECAL RH GRABHANDLE
7075709
No disponible
20
DECAL RH SIDE WALL
7075571
No disponible
21
DECAL RH RUBRAIL TOP
7075573
No disponible
22
DECAL FIRE EXTINGUISHER
7073467
No disponible
23
DECAL ON/OFF/RES
7075734
No disponible
24
DECAL WARN ENG.CVR SLR
7075740
No disponible

En esta página encontrará el esquema detallado :label POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
