1
Cilindrada
700
2
Año
1996
3
Acabado
INTL HURRICANE - I964466
4
Catálogo de recambios
CAJA DE BATERIA HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573B005)
5
Despiece
Catálogo de recambios
SISTEMA DE ESCAPE HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573B004)
por
SALIDA DE AIRE HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573B006)

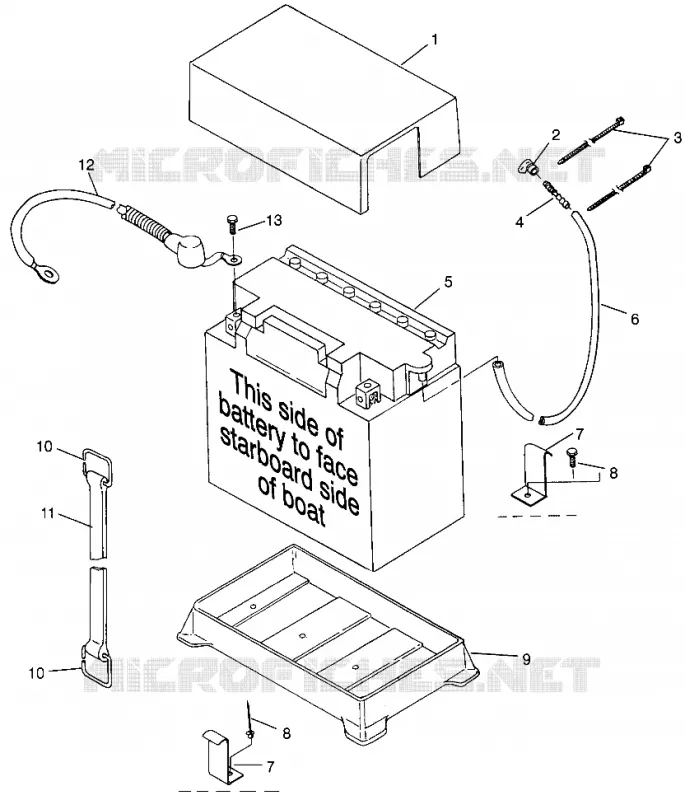

CAJA DE BATERIA HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573B005)
1
COVER BATTERY
5710037
No disponible
2
GROMMET VENT
5410682
No disponible
3
STRAP PANDUIT 4 IN.(10)
7080483
No disponible
4
CONNECTOR
7052078
No disponible
5
BATTERY 19AMP(MARINE)
4140009
No disponible
6
TUBE BATT.VENT 28# Substituted by 5432121
5432421
0,89€ Precio unitario con IVA
7
BRKT STRAP SHORT
5222739
No disponible
8
SCR-#14X1-3/4 LG HI/LO/TAPER-M
7512093
2,39€ Precio unitario con IVA
9
TRAY BATTERY
5431559
No disponible
10
HOOK #D# S.S.
5224577
No disponible
11
Boot Rubber
5411054
No disponible
12
CABLE BLK BATT/ENG.
4010080
No disponible
13
BOLT BATT KIT(10)
2200619
No disponible

En esta página encontrará el esquema detallado :label POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
