1
Cilindrada
700
2
Año
1996
3
Acabado
INTL HURRICANE - I964466
4
Catálogo de recambios
BOMBA DE ACHIQUE HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573B011)
5
Despiece
Catálogo de recambios
CAJA ELECTRICA HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573B010)
por
KIT DE HERRAMIENTA HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573B012)

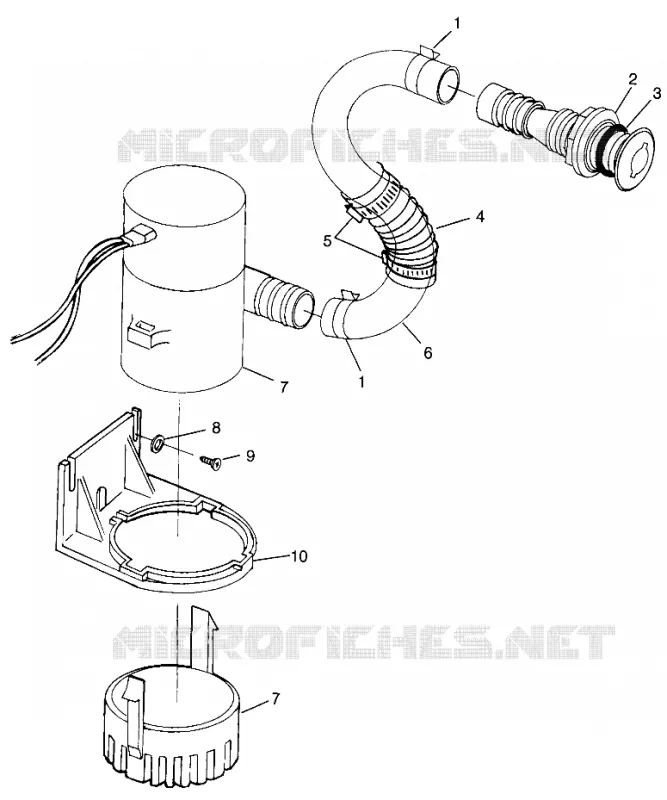

BOMBA DE ACHIQUE HURRICANE B964466 and Intl. HURRICANE I964466 (4935733573B011)
1
Clamp Hose
7080475
No disponible
2
FITTING THRU HULL WATER Substituted by 5431444-133
5431444
No disponible
3
GASKET
5811317
No disponible
4
CONDUIT FLEX 1.250ID
552128745
No disponible
5
CABLE-TIE DIA12-50MM WTHR-RES.
7080138
3,46€ Precio unitario con IVA
6
HOSE BILGE Substituted by 8450055-81
5411155
No disponible
7
PUMP BILGE Substituted by 2871237
2410035
No disponible
8
DESC NOT_AVAILABLE
7555337
No disponible
9
SCREW(10)
7512052
No disponible
10
BRACKET MTG.
5431889
No disponible

En esta página encontrará el esquema detallado :label POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
