1
Cilindrada
500
2
Año
1996
3
Acabado
SPORTSMAN 500 - W969244
4
Catálogo de recambios

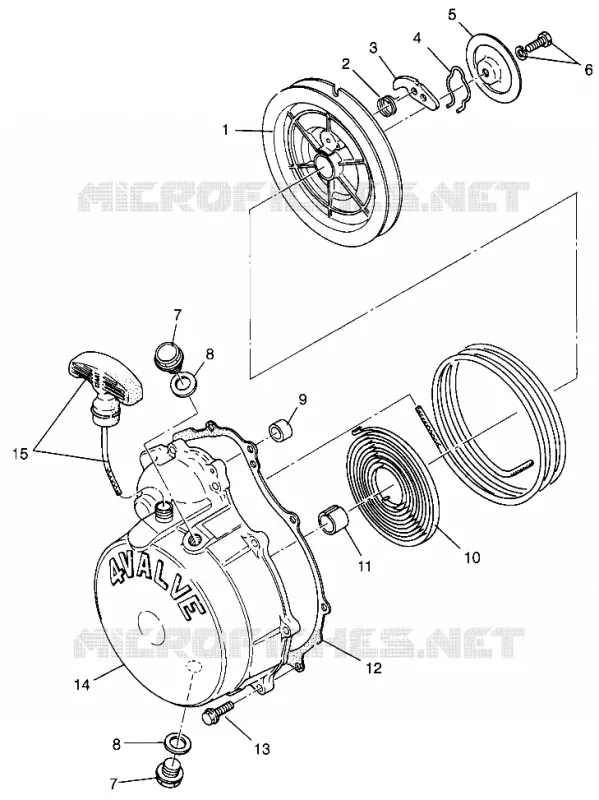

ARRANQUE DE RETROCESO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D009)
5
Despiece
Catálogo de recambios
CIGUEÑAL AND PISTÓN SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S9692 (4936093609D004)
por
CARBURADOR SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D010)
ARRANQUE DE RETROCESO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D009)
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
14
14
14
15
1
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
14
14
14
15
1
2
3
4
5
6
6
6
6
6
6
7
7
7
7
7
7
8
9
10
11
12
13
14
14
14
14
15
1
REEL STARTER
3084822
No disponible
2
SPRING RETURN
3083463
No disponible
3
RATCHET
3083378
No disponible
4
SPRING FRICTION
3083379
No disponible
5
PLATE FRICTION
3084744
No disponible
6
BOLT&WASHER ASM.
3085266
No disponible
7
PLUG Substituted by 3086749
3083453
No disponible
8
GASKET
3082956
No disponible
9
BUSHING STARTER
3083669
No disponible
10
Spring Power
3083185
No disponible
11
BUSH
3084750
No disponible
12
GASKET RECOIL
3084933
No disponible
13
BOLT FLANGE(10)
3084877
No disponible
14
CASE STARTER Substituted by 3085405 (Incl. 11)
3085406
197,36€ Precio unitario con IVA
14
RECOIL ASM. Substituted by 3085652 (Incl. 1-6 9-11 14 15)
3085405
252,44€ Precio unitario con IVA
15
ROPE ASM
3085083
No disponible

En esta página encontrará el esquema detallado ARRANQUE DE RETROCESO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D009) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
