1
Cilindrada
500
2
Año
1996
3
Acabado
SPORTSMAN 500 - W969244
4
Catálogo de recambios
Embrague SPORTSMAN 500 W969244 (4936093609C002)
5
Despiece
Catálogo de recambios
Wishbones SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S96924 (4936093609C001)
por
accionado de embrague SPORTSMAN 500 W969244 (4936093609C003)

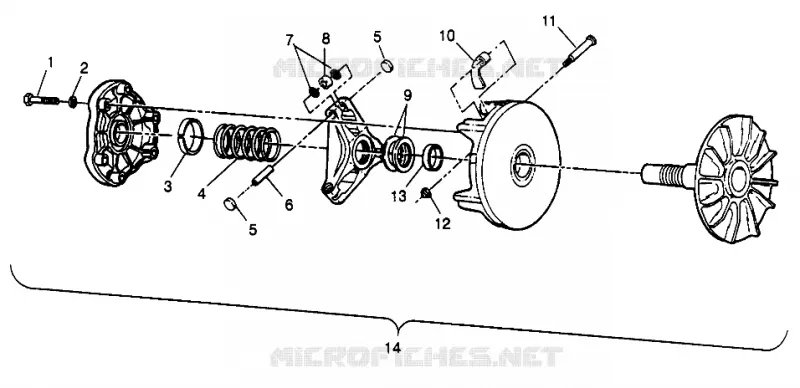

Embrague SPORTSMAN 500 W969244 (4936093609C002)
1
2
3
4
5
5
6
7
8
9
9
9
9
9
9
9
9
9
10
11
12
13
14
1
2
3
4
5
5
6
7
8
9
9
9
9
9
9
9
9
9
10
11
12
13
14
1
BOLT(10) Substituted by 7512163
7512176
7512163
7,98€ Precio unitario con IVA
2
WASHER SPRING LOCK
7552801
3,18€ Precio unitario con IVA
3
BEARING COVER (10)
3576510
14,30€ Precio unitario con IVA
4
SPRING CLUTCH
7041157
87,92€ Precio unitario con IVA
5
Button Clutch
5431936
5439254
20,14€ Precio unitario con IVA
6
PIN-ROLLER
5020422
4,79€ Precio unitario con IVA
7
WASHER
5430945
5438247
3,18€ Precio unitario con IVA
8
ASM-ROLLER AND BUSHING
1321457
78,73€ Precio unitario con IVA
9
SPACER-1.350 X 1.750 X .020-Y
5210752
3,18€ Precio unitario con IVA
9
SPACER-1.350 X 1.750 X .050-Y
5210754
6,38€ Precio unitario con IVA
9
SPACER-1.350X1.750X.032-Y
5210753
4,79€ Precio unitario con IVA
10
Weight Shift 10 MH
5630513
5632281
61,24€ Precio unitario con IVA
11
SCR-SH-1/4X2 SAE4037 BLKOX&OIL
7512266
6,38€ Precio unitario con IVA
12
NUT-10-24-FLEX LOC-Z
7541906
6,38€ Precio unitario con IVA
13
Bearing Moveable (1/2 inch)
3576504
35,78€ Precio unitario con IVA
14
CLUTCH DRIVE(ATV-06) (Incl. All Less 4 9)
1321632
1321976
1 018,63€ Precio unitario con IVA

En esta página encontrará el esquema detallado Embrague SPORTSMAN 500 W969244 (4936093609C002) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
