1
Cilindrada
500
2
Año
1996
3
Acabado
SPORTSMAN 500 - W969244
4
Catálogo de recambios
Wishbones SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S96924 (4936093609C001)
5
Despiece
Catálogo de recambios
CV JOINT
por
Embrague SPORTSMAN 500 W969244 (4936093609C002)
Wishbones SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S96924 (4936093609C001)
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
14
14
15
16
17
18
19
20
20
20
20
21
22
22
23
23
24
25
25
25
25
26
27
27
28
28
29
30
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
14
14
14
15
16
17
18
19
20
20
20
20
21
22
22
23
23
24
25
25
25
25
26
27
27
28
28
29
30
1
Nut
7542403
No disponible
2
BUSHING
5333367
No disponible
3
TIE ROD ASM. Substituted by 1822478 (Incl. 7-12)
1822202
2201741
198,19€ Precio unitario con IVA
4
Asm. Rod End/Seal Boot
1822179
No disponible
5
BOOT SEAL ROD END
5410540
No disponible
6
ROD END RH Substituted by 1822179
7060149
38,17€ Precio unitario con IVA
7
NUT-3/8-24-2B-Z
7542401
4,79€ Precio unitario con IVA
8
ROD TIE
5020768
No disponible
9
NUT LH 10 MM.(10)
7546902
No disponible
10
ROD END LH W/FTG 10 MM.
7060171
65,40€ Precio unitario con IVA
11
WASHER
7555806
1,81€ Precio unitario con IVA
12
NUT CASTLE(10)
7546904
No disponible
13
PIN COTTER
7661203
2,39€ Precio unitario con IVA
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
No disponible
15
BALL JOINT Substituted by 7080673 (Incl. 32-34)
7080364
7061306
135,90€ Precio unitario con IVA
16
BRACKET-BALL JOINT
5211121
41,75€ Precio unitario con IVA
17
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
2,39€ Precio unitario con IVA
18
BOOT RUBBER
5410548
5412658
7,98€ Precio unitario con IVA
19
NUT-3/8-24 HX CA GR5-Y
7542438
3,18€ Precio unitario con IVA
20
SHIELD LH.CV BLK.
5431837
No disponible
20
SHIELD RH.CV BLK.
5431838
No disponible
21
SCR-10-24X1/2 PHTXTRIRD SEMS-Y
7512084
2,39€ Precio unitario con IVA
22
BUSHING A-ARM LONG. Substituted by 5433066
5431596
5436973
8,92€ Precio unitario con IVA
23
BUSHING A-ARM SPACER(10)
5020677
15,50€ Precio unitario con IVA
24
SHAFT A-ARM
5020681
5133806
52,48€ Precio unitario con IVA
25
KIT LH A-FRAME Substituted by 2201607
2200736
2202280
267,74€ Precio unitario con IVA
25
KIT RH A-FRAME Substituted by 2201608
2200737
2202281
267,74€ Precio unitario con IVA
26
FITTING LUBRICATION
7080433
2,39€ Precio unitario con IVA
27
BOLT(10) Substituted by 7512492
7515458
7512492
2,39€ Precio unitario con IVA
28
WASHER-SPRING-LOCK
7552603
1,81€ Precio unitario con IVA
29
SCREW(10)
7515554
No disponible
30
SCREW
7515415
2,39€ Precio unitario con IVA

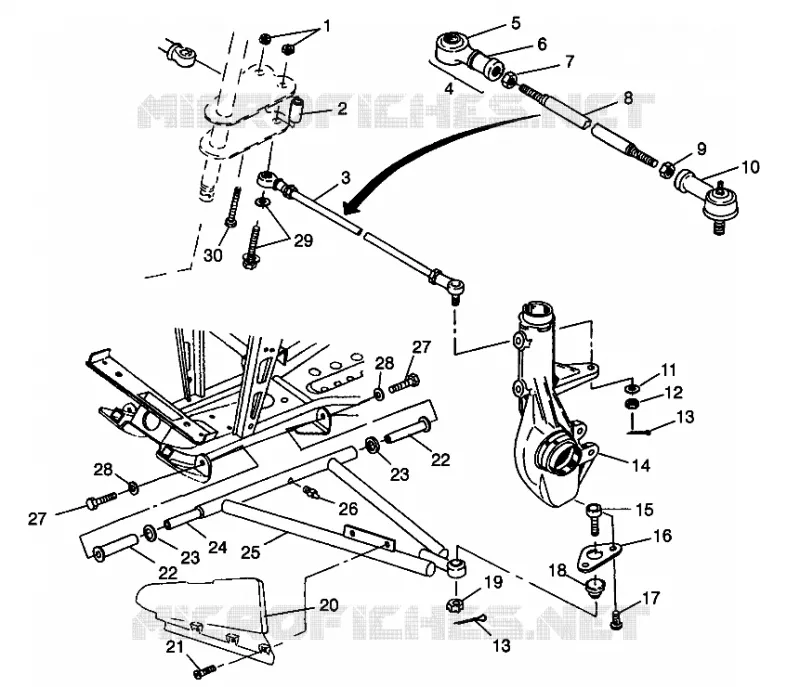

En esta página encontrará el esquema detallado Wishbones SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S96924 (4936093609C001) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
