1
Cilindrada
500
2
Año
1996
3
Acabado
SPORTSMAN 500 - W969244
4
Catálogo de recambios
CARBURADOR SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D010)
5
Despiece
Catálogo de recambios
ARRANQUE DE RETROCESO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D009)
por
MOTOR DE ARRANQUE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D012)
CARBURADOR SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D010)
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
RING
3130507
9,61€ Precio unitario con IVA
2
E-RING
3130508
10,98€ Precio unitario con IVA
3
JET NEEDLE (5D78-2) (5D78-3)
3130667
No disponible
4
RING Substituted by 3130752
3130509
3130752
9,61€ Precio unitario con IVA
5
DIAPHRAGM ASM.
3130506
No disponible
6
JET NEEDLE (P-1) (P-1)
3130666
No disponible
7
SCREW
3130541
No disponible
8
WASHER SPRING
3130540
No disponible
9
JETBLOCK ASM.
3130504
111,91€ Precio unitario con IVA
10
WASHER
3130014
3,18€ Precio unitario con IVA
11
MAIN JET #140 (#140)
3130527
No disponible
12
SEAL
3130515
No disponible
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
No disponible
14
E-Ring
3130518
No disponible
15
CAP
3130519
No disponible
16
PIN FLOAT
3130361
20,14€ Precio unitario con IVA
17
FILTER
3130534
13,12€ Precio unitario con IVA
18
O-RING
3130533
9,61€ Precio unitario con IVA
19
VALVE NEEDLE (1.5) Substituted by 3130531 (1.5)
3130668
3131360
87,92€ Precio unitario con IVA
20
PLATE
3130594
No disponible
21
SCREW
3130591
7,98€ Precio unitario con IVA
22
O-RING
3130532
47,71€ Precio unitario con IVA
23
SCREW
3130520
3,18€ Precio unitario con IVA
24
Asm. Body Float
3130590
191,24€ Precio unitario con IVA
25
SCREW
3130521
15,50€ Precio unitario con IVA
26
FLOAT ASM.
3130529
151,88€ Precio unitario con IVA
27
JET PILOT #42.5 (#42.5)
3130526
52,48€ Precio unitario con IVA
28
O-RING
3130522
9,61€ Precio unitario con IVA
29
WASHER
3130523
4,79€ Precio unitario con IVA
30
SPRING
3130525
No disponible
31
ADJUSTER
3130524
35,78€ Precio unitario con IVA
32
SCREW ADJ.
3130546
No disponible
33
RING
3130545
No disponible
34
SPRING
3130544
No disponible
35
VALVE THROTTLE (100)
3130502
79,93€ Precio unitario con IVA
36
SPRING
3130589
No disponible
37
RING
3130514
No disponible
38
SCREW
3130501
No disponible
39
SHAFT ASM THROTTLE
3130513
No disponible
40
CABLE GUIDE MIKUNI BTM36/30
3130543
52,48€ Precio unitario con IVA
41
SCREW
3130535
12,36€ Precio unitario con IVA
42
COVER
3130511
78,73€ Precio unitario con IVA
43
O-RING
3130512
No disponible
44
HOLDER GUIDE
3130199
35,78€ Precio unitario con IVA
45
SPRING
3130538
No disponible
46
PLUNGER ASM. Substituted by 3130539
3130593
3130539
63,62€ Precio unitario con IVA
47
JET AIR #160 (#160)
3130625
27,98€ Precio unitario con IVA
48
CARBURETOR Substituted by 3130723 (Incl. 1-39 44-52)
3130665
457,46€ Precio unitario con IVA
49
SCREW & WASHER(10)
3084205
No disponible
50
SPRING
3130505
43,73€ Precio unitario con IVA
51
COVER
3130503
119,90€ Precio unitario con IVA
52
SCREW-MIKUNI C2=0408
3130592
3130924
3,18€ Precio unitario con IVA

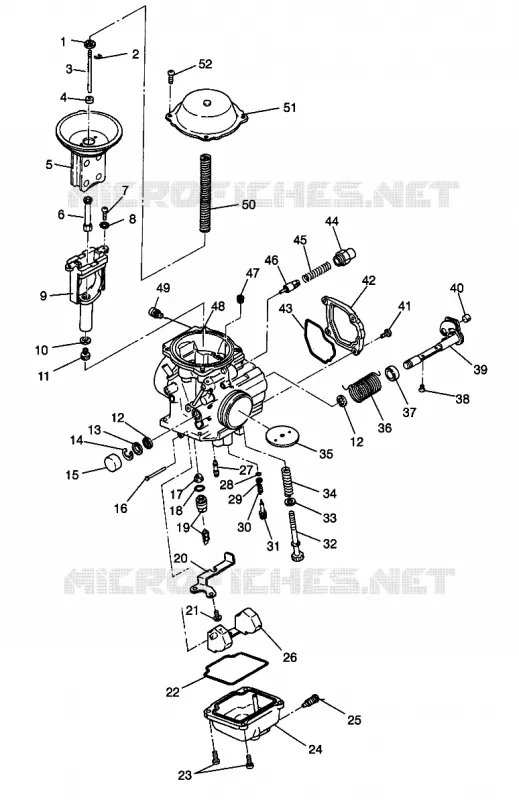

En esta página encontrará el esquema detallado CARBURADOR SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D010) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
