1
Cilindrada
500
2
Año
1996
3
Acabado
SPORTSMAN 500 - W969244
4
Catálogo de recambios

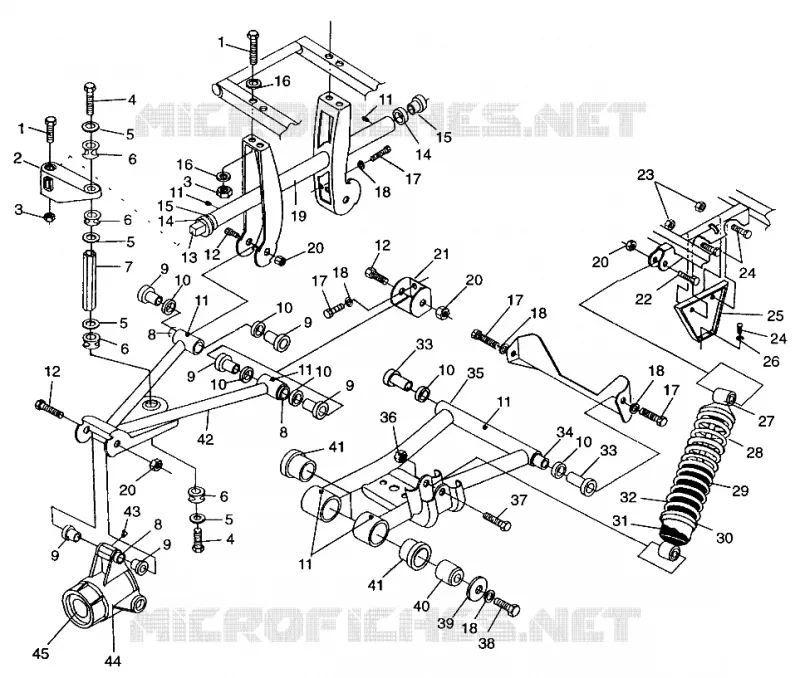

SUSPENSIÓN TRASERA SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C005)
5
Despiece
Catálogo de recambios
tapa del embrague SPORTSMAN 500 W969244 (4936093609C004)
por
FRENO TRASERO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C007)
SUSPENSIÓN TRASERA SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C005)
1
1
2
3
3
4
4
5
5
5
5
6
6
6
6
7
8
8
8
9
9
9
9
9
9
10
10
10
10
10
10
11
11
11
11
11
12
12
12
13
14
14
15
15
16
16
17
17
17
17
18
18
18
18
18
19
20
20
20
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
33
34
35
35
35
35
36
37
38
39
40
41
41
42
42
42
42
43
44
45
1
1
2
3
3
4
4
5
5
5
5
6
6
6
6
7
8
8
8
9
9
9
9
9
9
10
10
10
10
10
10
11
11
11
11
11
12
12
12
13
14
14
15
15
16
16
17
17
17
17
18
18
18
18
18
19
20
20
20
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
33
34
35
35
35
35
36
37
38
39
40
41
41
42
42
42
42
43
44
45
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
SCR-HH-5/16-18X1.75 GR5 ZY3
7512329
7,98€ Precio unitario con IVA
2
ARM STAB.BAR BLK Substituted by 1580107-067
1580096067
1543119-067
95,93€ Precio unitario con IVA
3
NUT FLEX-LOC(10)
7542303
No disponible
4
SCREW(10)
7517231
12,36€ Precio unitario con IVA
5
Washer Flat
7555761
4,79€ Precio unitario con IVA
6
BUSHING STABILIZER LINK Substituted by 5432598
5432119
5432598
10,98€ Precio unitario con IVA
7
ROD LINKAGE STABILIZER
5020827
87,92€ Precio unitario con IVA
8
Shaft A-Arm. Short
5020826
24,48€ Precio unitario con IVA
9
BUSHING A-ARM SHORT Substituted by 5433063
5432091
5439270
4,79€ Precio unitario con IVA
10
BUSHING A-ARM SPACER(10)
5020677
15,50€ Precio unitario con IVA
11
FITTING LUBRICATION
7080433
2,39€ Precio unitario con IVA
12
SCR-3/8-24X3 3/4 HX CP GR5-Y
7515472
4,79€ Precio unitario con IVA
13
BAR STAB.TUBE BLK.
5333393067
5334114-329
152,98€ Precio unitario con IVA
14
WSHR-1.28X1.69X.075-Y
7555939
7,98€ Precio unitario con IVA
15
BUSHING STAB.TUBE Substituted by 5433413
5432169
5438901
13,12€ Precio unitario con IVA
16
WASHER-.344X.688X.063 FL-Y
7558402
1,81€ Precio unitario con IVA
17
BOLT(10) Substituted by 7512492
7515458
7512492
2,39€ Precio unitario con IVA
18
WASHER-SPRING-LOCK
7552603
1,81€ Precio unitario con IVA
19
SUPPORT STABILIZER BLK Substituted by 1541322-067
1580097067
75,94€ Precio unitario con IVA
20
Nut
7542403
No disponible
21
BRKT A-ARM PIVOT BLK Substituted by 5242077-067
5224659067
15,97€ Precio unitario con IVA
22
BOLT Substituted by 7515491
7515433
3,18€ Precio unitario con IVA
23
NUT FLANGE
7542321
2,39€ Precio unitario con IVA
24
BOLT(10)
7515321
No disponible
25
SUPPORT UPR.TRANS BLK
5224667067
No disponible
26
WASHER-5/16 SPRING LK-MED-Y
7552901
2,39€ Precio unitario con IVA
27
RETAINER SPRING
5131533
No disponible
28
SPRING R.COMP 100LB/IN BLK Substituted by 7041453-067
7041546067
7042311-067
143,89€ Precio unitario con IVA
29
SLEEVE SPRING PROTECTOR
5431032
No disponible
30
CAM ADJUSTING SPRING
5630334
No disponible
31
SHOCK REAR ATV
7041454
No disponible
32
ADAPTER SPRING SEAT
5630351
No disponible
33
BUSHING A-ARM LONG. Substituted by 5433066
5431596
5436973
8,92€ Precio unitario con IVA
34
SHAFT A-ARM
5020681
5133806
52,48€ Precio unitario con IVA
35
CONTROL RH LOW BLK.
1040446067
No disponible
35
CONTROL LH LOW BLK
1040445067
No disponible
36
NUT-3/8-24(NYLOK)-Y
7542439
2,39€ Precio unitario con IVA
37
SCREW
7515415
2,39€ Precio unitario con IVA
38
BOLT(10)
7515502
No disponible
39
Washer
7555936
7,98€ Precio unitario con IVA
40
BUSHING BRNG.CARRIER ALUM Substituted by 5131883
5020825
11,53€ Precio unitario con IVA
41
BUSHING CONTROL LOWER Substituted by 5433065
5432092
5438902
8,23€ Precio unitario con IVA
42
CONTROL LH UPPER BLK Substituted by 1040586-067
1040443067
116,71€ Precio unitario con IVA
42
CONTROL RH UPPER BLK Substituted by 1040587-067
1040444067
116,71€ Precio unitario con IVA
43
FITTING LUBE 45 DEG.(10)
7080586
No disponible
44
CARRIER BRG WHEEL (MACH) Substituted by 5131738
5131186
5134206
151,25€ Precio unitario con IVA
45
Bearing Ball
3585502
3514635
59,65€ Precio unitario con IVA

En esta página encontrará el esquema detallado SUSPENSIÓN TRASERA SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C005) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.

Otras piezas para SPORTSMAN 500 - W969244

TRASERO CABINA Y ASIENTO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A006)

TRASERO CABINA Y ASIENTO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A006)

para SPORTSMAN 500 - W969244 a partir de 1996

El montaje en bastidor trasero SPORTSMAN 500 W969244 (4936093609A008)

El montaje en bastidor trasero SPORTSMAN 500 W969244 (4936093609A008)

para SPORTSMAN 500 - W969244 a partir de 1996

ETIQUETAS SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A009)

ETIQUETAS SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A009)

para SPORTSMAN 500 - W969244 a partir de 1996

Portaequipajes delantero y Montaje TOPE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609A010)

Portaequipajes delantero y Montaje TOPE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609A010)

para SPORTSMAN 500 - W969244 a partir de 1996

CAJA FILTRO DE AIRE SPORTSMAN 500 W969244 (4936093609B001)

CAJA FILTRO DE AIRE SPORTSMAN 500 W969244 (4936093609B001)

para SPORTSMAN 500 - W969244 a partir de 1996

CV JOINT

CV JOINT

para SPORTSMAN 500 - W969244 a partir de 1996

TRASERO DEL EJE DE TRANSMISION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B003)

TRASERO DEL EJE DE TRANSMISION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B003)

para SPORTSMAN 500 - W969244 a partir de 1996

DEL EJE DE PROPULSIÓN SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609B004)

DEL EJE DE PROPULSIÓN SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609B004)

para SPORTSMAN 500 - W969244 a partir de 1996

puntal delantero SPORTSMAN 500 W969244 (4936093609B005)

puntal delantero SPORTSMAN 500 W969244 (4936093609B005)

para SPORTSMAN 500 - W969244 a partir de 1996

MANILLAR y la linterna POD SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 (4936093609B010)

MANILLAR y la linterna POD SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 (4936093609B010)

para SPORTSMAN 500 - W969244 a partir de 1996

miembro de gobierno SPORTSMAN 500 W969244 (4936093609B012)

miembro de gobierno SPORTSMAN 500 W969244 (4936093609B012)

para SPORTSMAN 500 - W969244 a partir de 1996

TANQUE DE ACEITE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B013)

TANQUE DE ACEITE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B013)

para SPORTSMAN 500 - W969244 a partir de 1996

BASTIDOR SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609B014)

BASTIDOR SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609B014)

para SPORTSMAN 500 - W969244 a partir de 1996

tapa del embrague SPORTSMAN 500 W969244 (4936093609C004)

tapa del embrague SPORTSMAN 500 W969244 (4936093609C004)

para SPORTSMAN 500 - W969244 a partir de 1996

SUSPENSIÓN TRASERA SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C005)

SUSPENSIÓN TRASERA SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C005)

para SPORTSMAN 500 - W969244 a partir de 1996

FRENO TRASERO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C007)

FRENO TRASERO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C007)

para SPORTSMAN 500 - W969244 a partir de 1996

Tracción trasera SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C008)

Tracción trasera SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C008)

para SPORTSMAN 500 - W969244 a partir de 1996

CAJA DE ENGRANAJES (Cases and Snorkel) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 50 (4936093609D001)

CAJA DE ENGRANAJES (Cases and Snorkel) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 50 (4936093609D001)

para SPORTSMAN 500 - W969244 a partir de 1996

CAJA DEL CIGÜEÑAL SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D002)

CAJA DEL CIGÜEÑAL SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D002)

para SPORTSMAN 500 - W969244 a partir de 1996

CILINDRO SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D003)

CILINDRO SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D003)

para SPORTSMAN 500 - W969244 a partir de 1996

CIGUEÑAL AND PISTÓN SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S9692 (4936093609D004)

CIGUEÑAL AND PISTÓN SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S9692 (4936093609D004)

para SPORTSMAN 500 - W969244 a partir de 1996

ARRANQUE DE RETROCESO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D009)

ARRANQUE DE RETROCESO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D009)

para SPORTSMAN 500 - W969244 a partir de 1996

CARBURADOR SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D010)

CARBURADOR SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D010)

para SPORTSMAN 500 - W969244 a partir de 1996

MOTOR DE ARRANQUE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D012)

MOTOR DE ARRANQUE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D012)

para SPORTSMAN 500 - W969244 a partir de 1996

MAGNETO SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D013)

MAGNETO SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D013)

para SPORTSMAN 500 - W969244 a partir de 1996

CABINA SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609A005)

CABINA SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609A005)

para SPORTSMAN 500 - W969244 a partir de 1996

MONTAJE DEL MOTOR SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A011)

MONTAJE DEL MOTOR SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A011)

para SPORTSMAN 500 - W969244 a partir de 1996

SISTEMA DE REFRIGERACIÓN SPORTSMAN 500 W969244 (4936093609A012)

SISTEMA DE REFRIGERACIÓN SPORTSMAN 500 W969244 (4936093609A012)

para SPORTSMAN 500 - W969244 a partir de 1996

SISTEMA DE ESCAPE SPORTSMAN 500 W969244 (4936093609A013)

SISTEMA DE ESCAPE SPORTSMAN 500 W969244 (4936093609A013)

para SPORTSMAN 500 - W969244 a partir de 1996

GASOLINA TANK SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A014)

GASOLINA TANK SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A014)

para SPORTSMAN 500 - W969244 a partir de 1996

RUEDA DELANTERA SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B006)

RUEDA DELANTERA SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B006)

para SPORTSMAN 500 - W969244 a partir de 1996

FRONT FRENO SPORTSMAN 500 W969244 (4936093609B007)

FRONT FRENO SPORTSMAN 500 W969244 (4936093609B007)

para SPORTSMAN 500 - W969244 a partir de 1996

CONTROLES

CONTROLES

para SPORTSMAN 500 - W969244 a partir de 1996

CONTROLES

CONTROLES

para SPORTSMAN 500 - W969244 a partir de 1996

CV JOINT

CV JOINT

para SPORTSMAN 500 - W969244 a partir de 1996

Wishbones SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S96924 (4936093609C001)

Wishbones SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S96924 (4936093609C001)

para SPORTSMAN 500 - W969244 a partir de 1996

Embrague SPORTSMAN 500 W969244 (4936093609C002)

Embrague SPORTSMAN 500 W969244 (4936093609C002)

para SPORTSMAN 500 - W969244 a partir de 1996

accionado de embrague SPORTSMAN 500 W969244 (4936093609C003)

accionado de embrague SPORTSMAN 500 W969244 (4936093609C003)

para SPORTSMAN 500 - W969244 a partir de 1996

ELECTRICA/LUZ DE LA COLA SPORTSMAN 500 W969244 (4936093609C009)

ELECTRICA/LUZ DE LA COLA SPORTSMAN 500 W969244 (4936093609C009)

para SPORTSMAN 500 - W969244 a partir de 1996

frontal de la carcasa SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C010)

frontal de la carcasa SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C010)

para SPORTSMAN 500 - W969244 a partir de 1996

KIT DE HERRAMIENTA SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C011)

KIT DE HERRAMIENTA SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C011)

para SPORTSMAN 500 - W969244 a partir de 1996

SELECTOR DEL TREN SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C012)

SELECTOR DEL TREN SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C012)

para SPORTSMAN 500 - W969244 a partir de 1996

CAJA DE ENGRANAJES (Internal Components) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609C013)

CAJA DE ENGRANAJES (Internal Components) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609C013)

para SPORTSMAN 500 - W969244 a partir de 1996

BOMBA DE AGUA SPORTSMAN 500 W969244 (4936093609D005)

BOMBA DE AGUA SPORTSMAN 500 W969244 (4936093609D005)

para SPORTSMAN 500 - W969244 a partir de 1996

BOMBA DE COMBUSTIBLE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D006)

BOMBA DE COMBUSTIBLE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D006)

para SPORTSMAN 500 - W969244 a partir de 1996

BOMBA DE ACEITE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D007)

BOMBA DE ACEITE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D007)

para SPORTSMAN 500 - W969244 a partir de 1996

FILTRO DE ACEITE SPORTSMAN 500 W969244 (4936093609D008)

FILTRO DE ACEITE SPORTSMAN 500 W969244 (4936093609D008)

para SPORTSMAN 500 - W969244 a partir de 1996

ESCAPE DE ADMISION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D014)

ESCAPE DE ADMISION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D014)

para SPORTSMAN 500 - W969244 a partir de 1996

POLARIS SPORTSMAN 500 - W969244 1996

SPORTSMAN 500 - W969244

SPORTSMAN 500 - W969244

Modelo : SPORTSMAN 500

Cilindrada : 500

Año : 1996

Piezas nuevas y originales del fabricante
Envíos internacionales
Precio oficial POLARIS
Un equipo de expertos a su servicio
Pago seguro
A su lado desde 2001
Opiniones de nuestros clientes
4.2 /5
1764 opiniones
Ver todas las opiniones
Catálogo de piezas de recambio para todas las marcas
