1
Cilindrada
500
2
Año
1996
3
Acabado
SPORTSMAN 500 - W969244
4
Catálogo de recambios
CV JOINT
5
Despiece
Catálogo de recambios
CAJA FILTRO DE AIRE SPORTSMAN 500 W969244 (4936093609B001)
por
TRASERO DEL EJE DE TRANSMISION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B003)

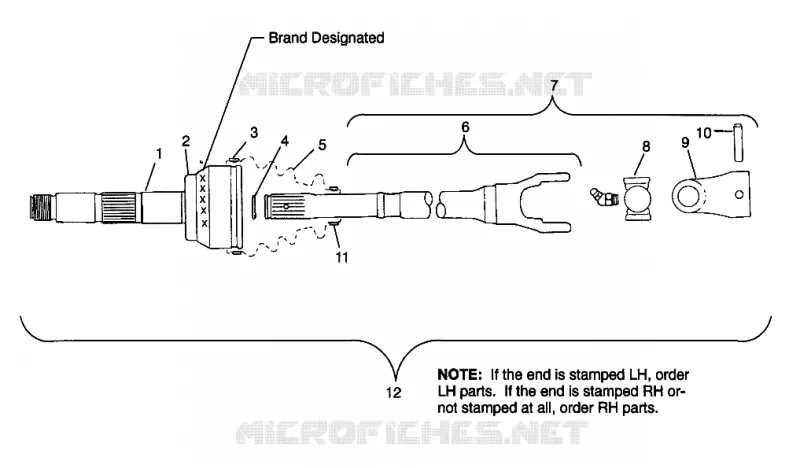

CV JOINT
1
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
1
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
1
2
3
4
5
6
7
8
9
1
HSG.ASM LH CV W/SLV. Substituted by 1380118
1380068
347,30€ Precio unitario con IVA
1
HSG.ASM RH CV W/SLV. Substituted by 1380118
1380069
347,30€ Precio unitario con IVA
2
SLEEVE SEAL
5222299
No disponible
3
Clamp Band
3260121
14,30€ Precio unitario con IVA
4
CIRCLIP
7670092
13,73€ Precio unitario con IVA
5
BOOT CV.
3260120
No disponible
6
Shaft Replacement [Incl. 4]
1380060
No disponible
7
Cardan Replacement [Incl. 4 6 8 9]
1380061
No disponible
8
KIT CROSS&BEARING
3260104
87,48€ Precio unitario con IVA
9
Yoke Splined
3260101
3260133
206,54€ Precio unitario con IVA
10
PIN-SPRING 5/16 X 1 5/8-Y
7661913
7,98€ Precio unitario con IVA
11
Clamp Band
3260123
10,98€ Precio unitario con IVA
12
SHAFT RH DRIVE ASM LONG. Substituted by 2200960
1380063
2200960
276,43€ Precio unitario con IVA
12
SHAFT LH DRIVE ASM LONG. Substituted by 2200960
1380066
2200960
276,43€ Precio unitario con IVA

En esta página encontrará el esquema detallado CV JOINT POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
