1
Cilindrada
500
2
Año
1996
3
Acabado
SPORTSMAN 500 - W969244
4
Catálogo de recambios
CONTROLES
5
Despiece
Catálogo de recambios
FRONT FRENO SPORTSMAN 500 W969244 (4936093609B007)
por
CONTROLES
CONTROLES
1
2
3
4
5
5
6
7
8
9
10
11
12
13
1
2
3
4
5
5
6
7
8
9
10
11
12
13
1
SCREW BUTTON HEAD
2010079
No disponible
2
DECAL THROTTLE(ENG.) [No Longer Available]
7072724
No disponible
3
CAP
2010080
No disponible
4
PACKING THROTTLE
2010081
No disponible
5
THROTTLE CONTROL ASM (Incl. 1-12)
2010158
No disponible
6
SWITCH ASM DEMAND DRIVE
4110166
No disponible
7
BULB DEMAND-DRIVE IND.
4030047
No disponible
8
HOLDER
2010078
No disponible
9
SCREW SEMS(10)
2010077
No disponible
10
BOLT HEX.
2010076
No disponible
11
PLATE
2010075
No disponible
12
SWITCH
4110203
No disponible
13
CABLE THROTTLE
7080617
No disponible

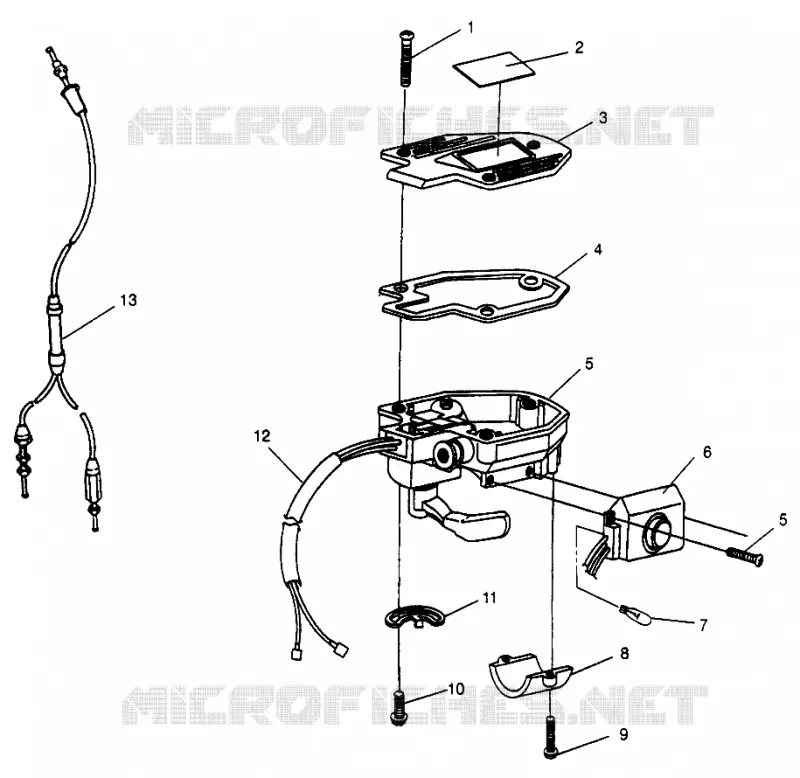

En esta página encontrará el esquema detallado CONTROLES POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
