1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

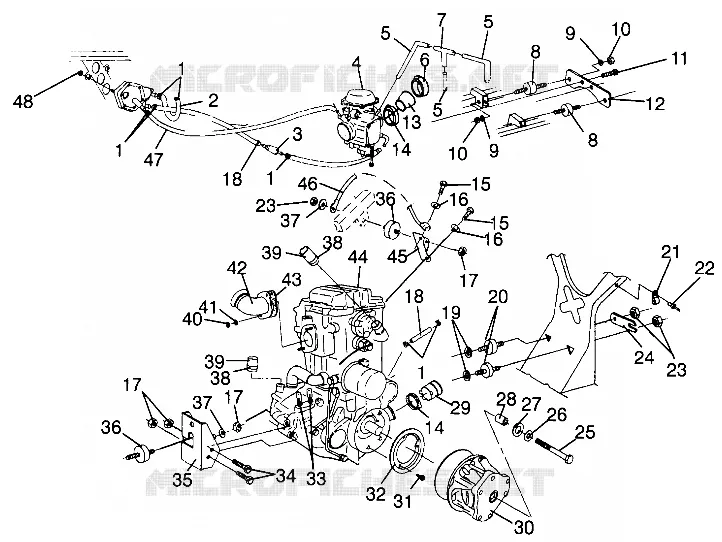

MONTAJE DEL MOTOR SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A011)
5
Despiece
Catálogo de recambios
CABINA SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609A005)
por
SISTEMA DE REFRIGERACIÓN SPORTSMAN 500 W969244 (4936093609A012)
MONTAJE DEL MOTOR SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A011)
1
HOSE CLAMP RED
7080003
2,98€ Precio unitario con IVA
2
HOSE-FORMED 1/4# ID (300)
5411015
No disponible
3
FILTER
2530009
10,54€ Precio unitario con IVA
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
No disponible
5
HOSE [BULK SVC]
84500031525
127,91€ Precio unitario con IVA
6
Clamp Narrow Band
7080656
7080511
8,23€ Precio unitario con IVA
7
FITTING-TEE 1/4-1/4-BRB-NY
7052075
14,30€ Precio unitario con IVA
8
MOUNT RUBBER
3110032
No disponible
9
WASHER(10)
7552605
No disponible
10
NUT-1/4-20 HEX-Y
7542105
7,98€ Precio unitario con IVA
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
No disponible
12
STRAP CARB.MT BLK.
5211626067
No disponible
13
BOOT CARB
5410995
No disponible
14
CLAMP-NARROW BAND 1.38/2.38
7080511
8,23€ Precio unitario con IVA
15
Bolt
7512315
8,23€ Precio unitario con IVA
16
WASHER-5/16 SPRING LK-MED-Y
7552901
2,39€ Precio unitario con IVA
17
Nut
7542403
No disponible
18
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
127,91€ Precio unitario con IVA
19
WASHER FLAT
7555815
7,98€ Precio unitario con IVA
20
Mount Rubber
3110046
28,38€ Precio unitario con IVA
21
CLAMP-NYLON CABLE 1/4#
7080539
8,23€ Precio unitario con IVA
22
RIVET-POP3/16(.251-.375)AL-B
7621462
2,39€ Precio unitario con IVA
23
NUT FLEXLOC
7542411
6,38€ Precio unitario con IVA
24
STRAP FRAME SUPPORT BLK
5224658067
No disponible
25
BOLT(10) *
7512566
No disponible
26
WASHER-7/16-INT LK-(1222)-Z [ACCESSORY]
7575202
8,23€ Precio unitario con IVA
27
WASHER-.440X1.25X.190 FL-Y
5210748
7,98€ Precio unitario con IVA
28
BUSHING-.437 X.770 X.50
5430261
12,36€ Precio unitario con IVA
29
BOOT CLUTCH INTAKE
5410421
No disponible
30
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
No disponible
32
BRKT RETAINER SEAL BLK. Substituted by 5242046-067
5240409067
5,27€ Precio unitario con IVA
33
CLAMP-HOSE .875-SS
7080474
12,36€ Precio unitario con IVA
34
BOLT(10)
7512435
No disponible
35
MOUNT FR.ENGINE BLK.
5241150067
4,94€ Precio unitario con IVA
36
Mount Rubber
3110044
3024012
71,58€ Precio unitario con IVA
37
WASHER(10)
7555801
7,98€ Precio unitario con IVA
38
CLAMP HOSE 1# NYLON
7080653
8,23€ Precio unitario con IVA
39
HOSE WATER Substituted by 8450050-305
845005063
14,50€ Precio unitario con IVA
40
NUT(10)
3080285
1,91€ Precio unitario con IVA
41
WASHER LOCK (10)
3080530
No disponible
42
MANIFOLD BLK
1260771029
107,11€ Precio unitario con IVA
43
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
No disponible
44
ENG.(S.B.)EH50PLE-01 Substituted by 3085556
3085235
4 693,03€ Precio unitario con IVA
45
MOUNT ENG TOP BLK
5241453067
6,71€ Precio unitario con IVA
46
CABLE GROUND/ENG.
4010067
No disponible
47
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
78,73€ Precio unitario con IVA
48
NUT-M5X.8 HX NYL-Y
7546601
2,39€ Precio unitario con IVA

En esta página encontrará el esquema detallado MONTAJE DEL MOTOR SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A011) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
