1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

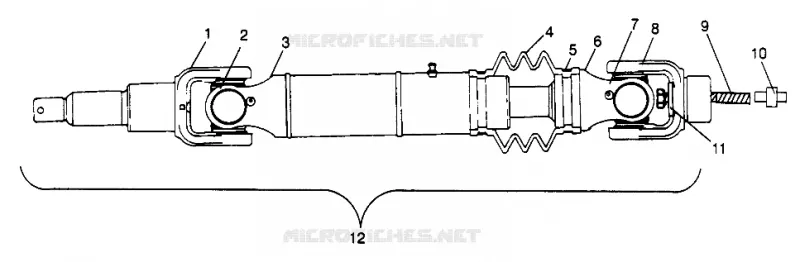

TRASERO DEL EJE DE TRANSMISION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B003)
5
Despiece
Catálogo de recambios
CV JOINT
por
DEL EJE DE PROPULSIÓN SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609B004)
TRASERO DEL EJE DE TRANSMISION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B003)
1
YOKE Substituted by 3260137
5131368
150,29€ Precio unitario con IVA
2
JOINT ASM.CARDAN 1200 SERIES
1590257
87,92€ Precio unitario con IVA
3
YOKE TUBE & SLEEVE
5131367
No disponible
4
BOOT SHAFT R.HALF
5411161
59,65€ Precio unitario con IVA
5
CLAMP (BOOT)
5241755
No disponible
6
YOKE SHAFT
5131369
No disponible
7
YOKE
5131370
No disponible
8
JOINT ASM CARDAN 1800 SERIES
1590256
103,92€ Precio unitario con IVA
9
BOLT Substituted by 7515491
7515433
3,18€ Precio unitario con IVA
10
SPACER HALFSHAFT ATTACH.
5020890
No disponible
11
Washer .105
7555832
4,79€ Precio unitario con IVA
12
DRIVESHAFT ASM REAR Substituted by 1380110
1380087
367,19€ Precio unitario con IVA

En esta página encontrará el esquema detallado TRASERO DEL EJE DE TRANSMISION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B003) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
