1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios
MANILLAR y la linterna POD SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 (4936093609B010)
5
Despiece
Catálogo de recambios
puntal delantero SPORTSMAN 500 W969244 (4936093609B005)
por
miembro de gobierno SPORTSMAN 500 W969244 (4936093609B012)

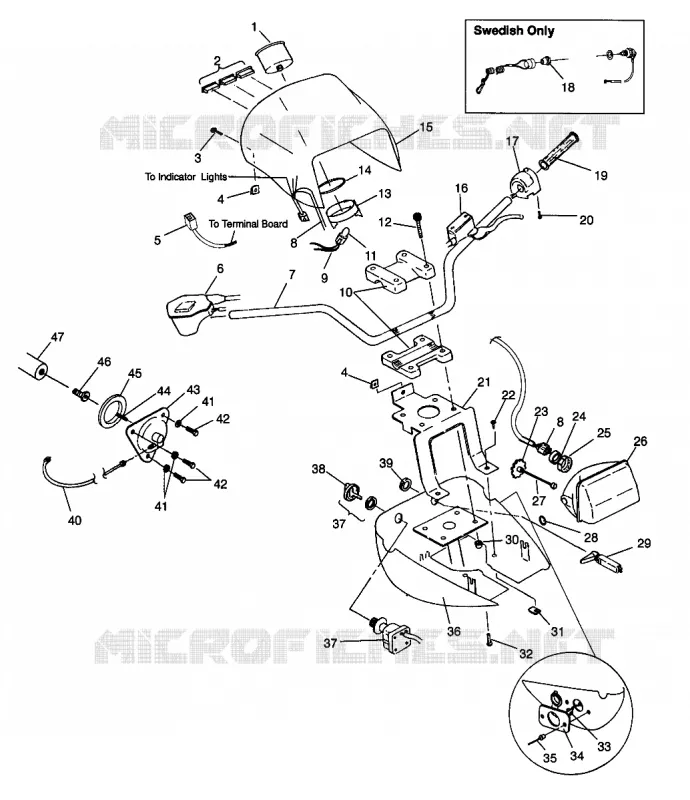

MANILLAR y la linterna POD SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 (4936093609B010)
1
SPEEDO.ASM 3# Substituted by 3280326 (Incl. 7 8)
3280172
189,71€ Precio unitario con IVA
1
SPEEDO KILOMETER 3# ATV (SWED)
3280258
No disponible
2
INDICATOR#HI-BEAM#WARN. (Classic)
4040013
No disponible
2
INDIC#NEUT./REV.#
4040054
61,24€ Precio unitario con IVA
2
INDIC#HOT TEMPERATURE#
4040053
61,24€ Precio unitario con IVA
3
SCREW(10)
7511881
2,39€ Precio unitario con IVA
4
NUT
7670086
No disponible
5
HARNESS WIRE INDIC LOW.
2460574
No disponible
6
THROTTLE CONTROL ASM (Incl. 1-12)
2010158
No disponible
7
TUBE H#BAR BLK. Substituted by 5242987-067
5224607067
5242987-067
168,29€ Precio unitario con IVA
8
HARNESS WIRE INDIC UP.
2460573
No disponible
9
HARNESS SPEEDO
2460387
No disponible
10
Block Handlebar Retainer
5630616067
No disponible
10
Kit Handlebar Block [Incl. Blocks and 7 11 29]
2200774
81,18€ Precio unitario con IVA
11
BULB TAILLIGHT(10)
4030015
9,36€ Precio unitario con IVA
12
SCREW(10)
7515188
No disponible
13
CLAMP BACK SPEEDO.
3280175
No disponible
14
GASKET SHOCK MT.
3280174
No disponible
15
POD H/L UP OLV.GRN. (US)
5431812191
No disponible
15
POD H/L UP. SCAND OLV (SWED)
5432452191
No disponible
16
MASTER CYL.ASM. Substituted by 2050078
2050072
2050078
451,34€ Precio unitario con IVA
17
SWITCH HI/LOW/OFF LH H#BAR
4110193
No disponible
18
SWITCH TETHER (SWED)
4110206
No disponible
19
GRIP HANDLEBAR
5431030
5433834-070
43,73€ Precio unitario con IVA
20
SCREW
2010055
No disponible
21
BRKT POD MTG BLK.
5240586067
5244969-329
47,71€ Precio unitario con IVA
22
SCREW(10)
7517317
6,38€ Precio unitario con IVA
23
KNOB ADJUSTING
4032079
43,73€ Precio unitario con IVA
24
BOOT HEADLIGHT
5411120
35,78€ Precio unitario con IVA
25
Collar Locking
4032077
41,75€ Precio unitario con IVA
26
Lens and Reflector
4032075
No disponible
26
BULB HALOGEN
2870448
34,98€ Precio unitario con IVA
27
Rod Adjusting
4032078
No disponible
28
O RING-.549X.755X1.03
5410163
3,18€ Precio unitario con IVA
29
CABLE CHOKE CONTROL
7080579
No disponible
29
KIT CHOKE CONTROL INCL. ANCHOR FLIPPER PIN
2200188
43,73€ Precio unitario con IVA
30
NUT(10)
7542124
7542122
2,39€ Precio unitario con IVA
31
NUT U-TYPE(10)
7670089
No disponible
32
SCREW(10)
7522021
No disponible
33
HARNESS 12V OUTLET
2460471
No disponible
34
POWERPLUG ASM 12V
2410025
No disponible
35
RIVET-5/32 BULBEX-B
7621334
2,39€ Precio unitario con IVA
36
POD H/L.LOW.BLK Substituted by 5433366-070
5432314070
77,68€ Precio unitario con IVA
37
SWITCH IGNITION (Incl. Key)
4110194
No disponible
38
COVER KEY Substituted by 5433534
5431964
5465307
26,23€ Precio unitario con IVA
39
Nut Choke Slide
7080229
29,82€ Precio unitario con IVA
40
CABLE SPEEDO (ATV)
3280236
No disponible
41
WASHER(10)
7555725
No disponible
42
BOLT(10)
7515378
No disponible
43
ADAPTER DRIVE(1:1.2)
3280219
No disponible
44
KEY SPEEDO.DRIVE
3280217
No disponible
45
SEAL ANGLE DRIVE
3280164
No disponible
46
BUSHING SPEEDO.DRIVE
5020741
No disponible
47
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
No disponible

En esta página encontrará el esquema detallado :label POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
