1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

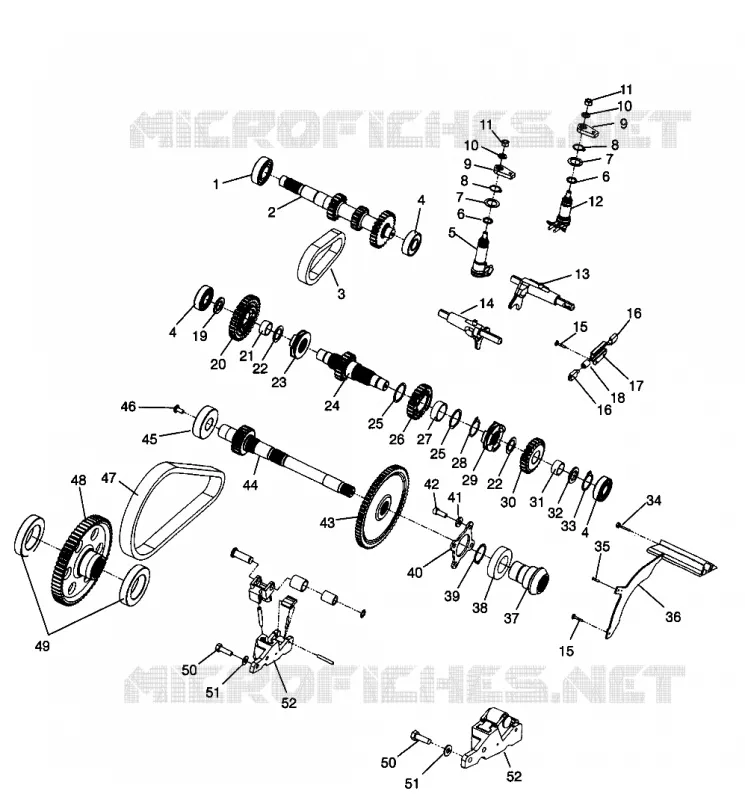

CAJA DE ENGRANAJES (Internal Components) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609C013)
5
Despiece
Catálogo de recambios
SELECTOR DEL TREN SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C012)
por
BOMBA DE AGUA SPORTSMAN 500 W969244 (4936093609D005)
CAJA DE ENGRANAJES (Internal Components) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609C013)
-
GEARCASE ASM SHAFT PRD Substituted by 1341226 (Incl. 1-52 and all on Gearcase (Cases and Snorkel)Page)
1341153
1 993,62€ Precio unitario con IVA
1
BEARING
3233019
47,71€ Precio unitario con IVA
2
SHAFT INPUT Substituted by 3233122
3233243
No disponible
3
CHAIN SILENT 34P
3233036
No disponible
4
BEARING BALL 6204 20 X 47 X 14
3233018
41,75€ Precio unitario con IVA
5
SHAFT SHIFT H/R
3233342
No disponible
6
O-RING Substituted by 3233548
3233044
10,46€ Precio unitario con IVA
7
WASHER
3233040
No disponible
8
RING RETAINING BASIC EXTERNAL 0.75
3233045
8,23€ Precio unitario con IVA
9
BELLCRANK
3233153
52,48€ Precio unitario con IVA
10
WASHER
3233054
No disponible
11
NUT
3233055
3233961
5,58€ Precio unitario con IVA
12
SHAFT SHIFT LOW
3233258
No disponible
13
FORK ASM SHIFT LOW
3233259
No disponible
14
FORK ASM SHIFT H/R
3233260
No disponible
15
SCREW Substituted by 3233747
3233033
2,22€ Precio unitario con IVA
16
PIN INTERLOCK
3233308
No disponible
17
BRACKET INTERLOCK
3233309
No disponible
18
SPRING
3233032
No disponible
19
WASHER
3233007
No disponible
20
GEAR 33T
3233125
No disponible
21
BEARING NEEDLE SPLIT CAGE 22 X 26 X 10
3233009
59,65€ Precio unitario con IVA
22
WASHER
3233010
No disponible
23
DOG ENGAGEMENT LOW
3233126
No disponible
24
SHAFT REVERSE
3233175
No disponible
25
WASHER
3233012
No disponible
26
SPROCKET 24T
3233127
No disponible
27
BEARING NEEDLE CAGE ASSY
3233014
59,95€ Precio unitario con IVA
28
RING RETAINING
3233029
No disponible
29
DOG ENGAGEMENT HI/REV.
3233128
No disponible
30
GEAR 25T Substituted by 3233129
3233244
111,91€ Precio unitario con IVA
31
BEARING BALL
3233017
53,68€ Precio unitario con IVA
32
WASHER THRUST 1.270 X 0.793 X 0.065
3233176
14,30€ Precio unitario con IVA
33
RING RETAINING
3233177
No disponible
34
SCREW
3233283
No disponible
35
SCREW
3233282
No disponible
36
DEFLECTOR OIL
3233284
No disponible
37
GEAR 16T SPIRAL BEVEL SNORKEL
3233365
No disponible
38
BEARING BALL 6007 C3 35 X 62 X 14
3233265
59,65€ Precio unitario con IVA
39
RING RETAINING SHAFT DIA. 1.375
3233364
10,98€ Precio unitario con IVA
40
COVER CTR.DRIVE BRG.
3233263
No disponible
41
WASHER-5/16 SPRING LK-MED-Y
7552901
2,39€ Precio unitario con IVA
42
SCREW
3233262
No disponible
43
GEAR 65T
3233130
No disponible
44
DRIVESHAFT CTR.
3233261
No disponible
45
BEARING BALL 6305 C3 25 X 62 X 17
3233020
65,40€ Precio unitario con IVA
46
BUSHING SPEEDO.DRIVE
5020741
No disponible
47
CHAIN SILENT 86P (15W)
3233267
No disponible
48
SPROCKET 60T
3233269
No disponible
49
BEARING BALL 6010 C3 50 X 80 X 10
3233268
70,86€ Precio unitario con IVA
50
SCREW
3233252
8,23€ Precio unitario con IVA
51
WASHER LOCK
3233272
No disponible
52
TENSIONER CHAIN
3233348
No disponible

En esta página encontrará el esquema detallado CAJA DE ENGRANAJES (Internal Components) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609C013) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
