1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

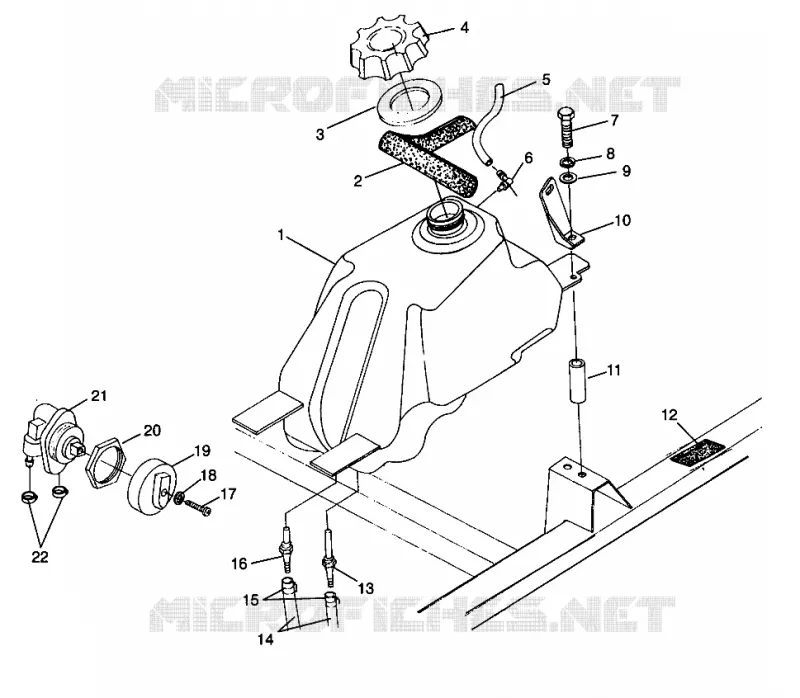

GASOLINA TANK SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A014)
5
Despiece
Catálogo de recambios
SISTEMA DE ESCAPE SPORTSMAN 500 W969244 (4936093609A013)
por
RUEDA DELANTERA SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B006)
GASOLINA TANK SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A014)
1
FUELTANK ASM. Substituted by 2520144
2511265
174,41€ Precio unitario con IVA
2
Seal Foam
5811310
No disponible
3
GASKET-GAS CAP
5810144
No disponible
4
CAP GAS (BLACK)
5430725
No disponible
5
HOSE-POLY CLEAR 3/16 OD 1/8 ID
8360009600
78,73€ Precio unitario con IVA
6
Vent Tank
5431053
No disponible
7
SCREW(10)
7515349
No disponible
8
WASHER-5/16 SPRING LK-MED-Y
7552901
2,39€ Precio unitario con IVA
9
WASHER-.344X.688X.063 FL-Y
7558402
1,81€ Precio unitario con IVA
10
BRKT RH.R.FUELCOVER BLK.
5222155067
3,66€ Precio unitario con IVA
10
BRKT LH.R.FUELCOVER BLK.
5222154067
3,98€ Precio unitario con IVA
11
Spacer
5332457
No disponible
12
PAD
5810317
77,68€ Precio unitario con IVA
13
Fitting Fuel Outlet Main
7052150
41,75€ Precio unitario con IVA
14
FUEL LINE-1/4 ID (SVC) 600 CM [BULK]
8450040600
127,91€ Precio unitario con IVA
15
HOSE CLAMP RED
7080003
2,98€ Precio unitario con IVA
16
Fitting Fuel Outlet Reserve
7052149
No disponible
17
SCREW S.S.(10)
7516302
No disponible
18
WASHER FLAT S.S.(10)
7555840
No disponible
19
KNOB FUEL VALVE Substituted by 5432559
5431807
No disponible
20
NUT FUEL VALVE
5431451
No disponible
21
VALVE CHECK
7052063
No disponible
22
CLAMP HOSE S.S.(10)
7080476
10,98€ Precio unitario con IVA

En esta página encontrará el esquema detallado :label POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
