1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

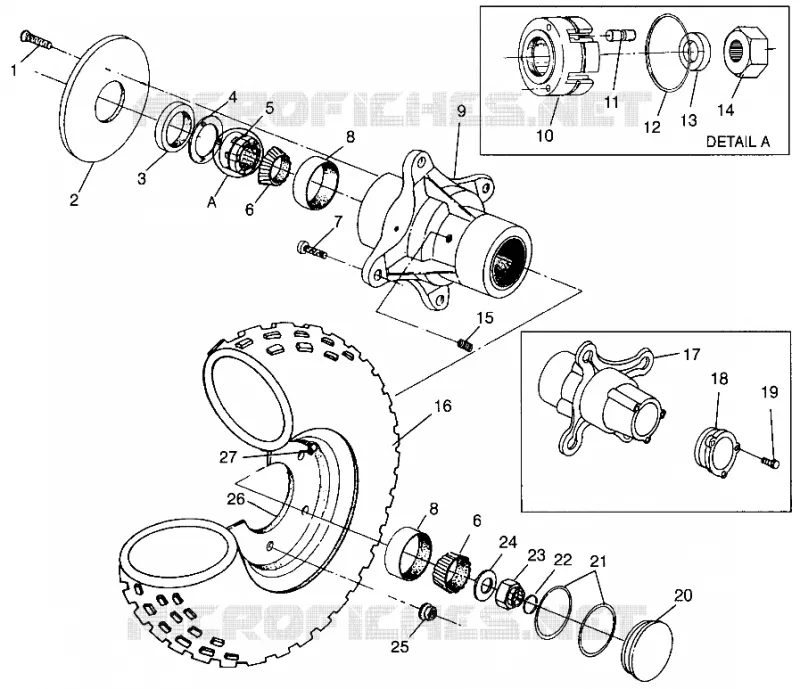

RUEDA DELANTERA SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B006)
5
Despiece
Catálogo de recambios
GASOLINA TANK SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A014)
por
FRONT FRENO SPORTSMAN 500 W969244 (4936093609B007)
RUEDA DELANTERA SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609B006)
1
BOLT(10)
7515321
No disponible
2
DISC BRAKE Substituted by 5242935 (If built before 5/03/99)
5211326
33,23€ Precio unitario con IVA
3
SEAL FR. HUB
3610019
53,68€ Precio unitario con IVA
4
PLATE ARMATURE
5211148
39,76€ Precio unitario con IVA
5
CLUTCH ASM FR.HUB E/M HVY. Substituted by 1520281
1520214
315,73€ Precio unitario con IVA
6
BRG TAPER.ROLL.CONE
3554506
47,71€ Precio unitario con IVA
7
STUD(10)
7515523
6,38€ Precio unitario con IVA
8
BRG TAPER ROLL CUP
3554507
47,71€ Precio unitario con IVA
9
HUB ASM W/BRG.RACE (Incl. 8 13 15)
1520182
244,80€ Precio unitario con IVA
10
CAGE ROLL
3250028
No disponible
11
ROLLS
3250010
No disponible
12
SPRING GARTER
3250032
No disponible
13
SPACER Substituted by 1321814
3250031
11,12€ Precio unitario con IVA
14
CAM (Splined Drive Shaft)
3250030
No disponible
15
PLUG PIPE
7052045
23,84€ Precio unitario con IVA
16
Tire [25x8-12]
5410947
5419027
160,63€ Precio unitario con IVA
17
HUB ASM (3-LOBE)W/BRG.RACE
1520227
329,64€ Precio unitario con IVA
18
CAP HUB 3-LOBE (AWD) Substituted by 5432611
5432347
16,72€ Precio unitario con IVA
19
SCREW(10)
7517250
No disponible
20
CAP HUB
5431368
No disponible
21
O RING
5410470
4,79€ Precio unitario con IVA
22
RING RETAINING
7710436
8,23€ Precio unitario con IVA
23
NUT RH THREAD
7543201
No disponible
23
NUT LH THREAD
7543204
No disponible
24
WASHER(10) *
7555903
No disponible
25
NUT-HXFL-3/8-24 B ZTB P-A
7542459
3,18€ Precio unitario con IVA
26
RIM FRONT(SPORTSMAN) Substituted by 1520269-067
1520179067
1523448-067
175,18€ Precio unitario con IVA
27
VALVE-RIM
1525017
10,98€ Precio unitario con IVA

En esta página encontrará el esquema detallado :label POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
