1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

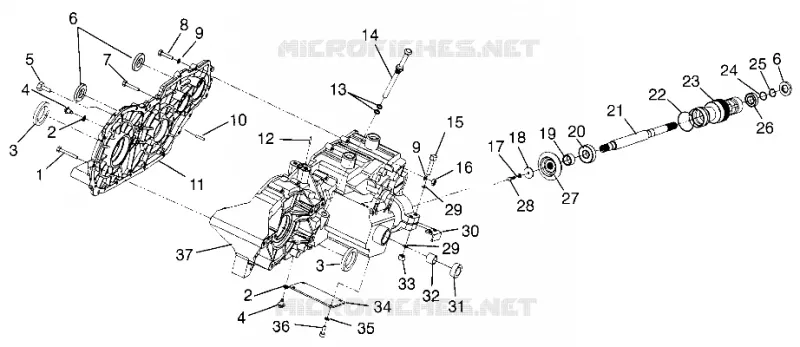

CAJA DE ENGRANAJES (Cases and Snorkel) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 50 (4936093609D001)
5
Despiece
Catálogo de recambios
Tracción trasera SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C008)
por
CAJA DEL CIGÜEÑAL SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D002)
CAJA DE ENGRANAJES (Cases and Snorkel) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 50 (4936093609D001)
-
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
No disponible
1
SCREW CAP
3233255
No disponible
2
PLUG WASHER
3233254
13,73€ Precio unitario con IVA
3
SEAL
3233256
3233878
47,71€ Precio unitario con IVA
4
PLUG DRAIN Substituted by 3233777
3233253
10,67€ Precio unitario con IVA
5
SCREW
3233252
8,23€ Precio unitario con IVA
6
SEAL
3233248
3233788
47,71€ Precio unitario con IVA
7
SCREW
3233251
No disponible
8
SCREW
3233249
No disponible
9
Screw
3233250
No disponible
10
PIN DOWEL
3233247
No disponible
11
GEARCASE LH
3233245
No disponible
12
VENT
3233037
No disponible
13
O-RING
3233053
No disponible
14
DIPSTICK
3233287
No disponible
15
BOLT
3233288
No disponible
16
Nut FLEXLOC
3233289
7542103
9,61€ Precio unitario con IVA
17
WASHER-5/16 SPRING LK-MED-Y
7552901
2,39€ Precio unitario con IVA
18
WASHER
3233352
No disponible
19
SPACER SNORKEL
3233358
No disponible
20
BEARING BALL 6305 C3 25 X 62 X 17
3233020
65,40€ Precio unitario con IVA
21
SHAFT SNORKEL
3233301
No disponible
22
O-RING
3233302
No disponible
23
SNORKEL
3233303
No disponible
24
SPACER (1.180 x .995 x .040)
3233355
No disponible
24
SPACER (1.180 x .995 x .005)
3233356
No disponible
24
SPACER
3233357
29,82€ Precio unitario con IVA
24
SPACER (1.180 x .995 x .010)
3233353
No disponible
24
SPACER (1.180 x .995 x .025)
3233354
No disponible
25
RING RETAINING BASIC EXT 0.938
3233306
8,23€ Precio unitario con IVA
26
Bearing Ball
3233305
47,71€ Precio unitario con IVA
27
GEAR 31T (SNORKEL)
3233299
No disponible
28
BOLT
3233351
No disponible
29
WASHER
3233054
No disponible
30
CLAMP SNORKEL (.075) (.075)
3233349
No disponible
30
CLAMP SNORKEL (.092) (.092)
3233350
No disponible
30
CLAMP (SNORKEL) STAMPING (.105)
3233290
No disponible
31
SEAL
3233293
14,78€ Precio unitario con IVA
32
BUSHING
3233292
No disponible
33
NUT FLEXLOCK
3233291
No disponible
34
PLATE COVER
3233294
No disponible
35
WASHER LOCK
3233295
No disponible
36
SCREW
3233296
No disponible
37
GEARCASE RH
3233285
No disponible

En esta página encontrará el esquema detallado CAJA DE ENGRANAJES (Cases and Snorkel) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 50 (4936093609D001) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
