1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

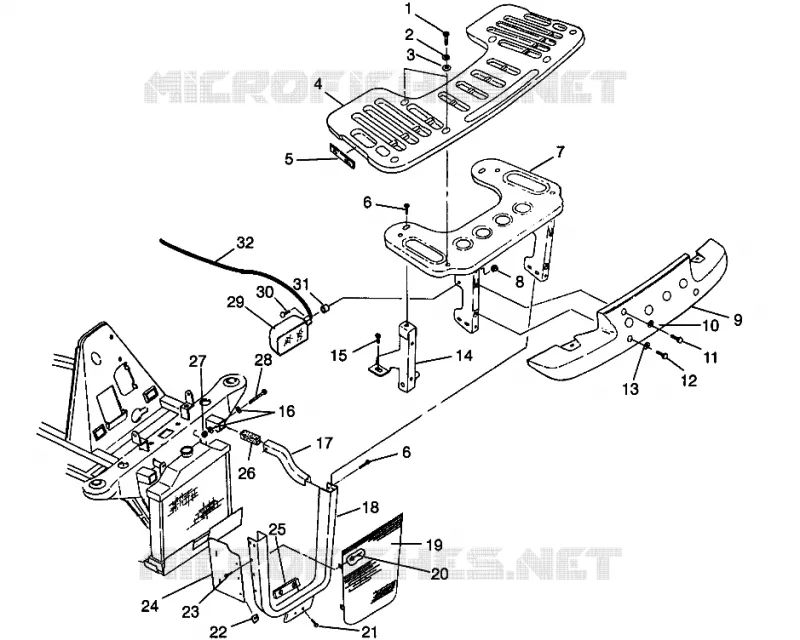

Portaequipajes delantero y Montaje TOPE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609A010)
5
Despiece
Catálogo de recambios
ETIQUETAS SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609A009)
por
CAJA FILTRO DE AIRE SPORTSMAN 500 W969244 (4936093609B001)
Portaequipajes delantero y Montaje TOPE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609A010)
1
SCREW
7512279
1,81€ Precio unitario con IVA
2
WASHER [INTL]
7555843
7558302
3,18€ Precio unitario con IVA
3
WASHER(10)
7552605
No disponible
4
Asm. Front Rack [Incl. Warning Decal]
2670180
174,41€ Precio unitario con IVA
5
REFLECTOR AMBER
2670071
No disponible
6
SCR-5/16-18X3/4 TFM HW T/R-Y
7515399
2,39€ Precio unitario con IVA
7
Kit Front Rack Mount
2200775
85,03€ Precio unitario con IVA
8
NUT NYLOK(10)
7542327
No disponible
9
Bumper
5432155070
187,76€ Precio unitario con IVA
10
WASHER(10) Substituted by 7558403
7555955
7558403
8,23€ Precio unitario con IVA
11
SCREW
7515391
8,23€ Precio unitario con IVA
12
Screw
7515390
No disponible
13
WASHER
7555954
8,23€ Precio unitario con IVA
14
SUPPORT RH FR.RACK BLK. Substituted by 1040555-067
1040509067
25,36€ Precio unitario con IVA
14
SUPPORT LH FR.RACK BLK. Substituted by 1040554-067
1040508067
19,93€ Precio unitario con IVA
15
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
2,39€ Precio unitario con IVA
16
WASHER-.344X.688X.063 FL-Y
7558402
1,81€ Precio unitario con IVA
17
EXTENSION RH.FRAME BLK.
5241399067
No disponible
17
EXTENSION LH.FRAME BLK.
5241398067
No disponible
18
GUARD BRUSH BLK
5241583067
91,13€ Precio unitario con IVA
19
GRILL BRUSHGUARD BLK.
5240591067
No disponible
20
RIVET (50)
7621336
3,18€ Precio unitario con IVA
21
Screw Flange
7517208
3,98€ Precio unitario con IVA
22
NUT U-TYPE
7670094
9,61€ Precio unitario con IVA
23
Screw
7512097
No disponible
24
SHIELD LH RADIATOR
5431814
No disponible
24
SHIELD RH RADIATOR
5431815
No disponible
25
SPACER BRUSHGUARD
5131312
No disponible
26
Plug Frame
5810467
No disponible
27
NUT-5/16-18 NYLOK-Y [INTL]
7542324
1,81€ Precio unitario con IVA
28
BOLT(10)
7515384
No disponible
29
H/L.ASM RH(37.5 WATT)
4032074
No disponible
29
BULB HI-BEAM
4030048
43,73€ Precio unitario con IVA
29
H/L.ASM LH(37.5 WATT)
4032082
No disponible
30
BOLT(10)
7515333
No disponible
31
SPACER H/L BLK.
5020809
No disponible
32
HARNESS JUMPER LO-BEAM
2460513
No disponible

En esta página encontrará el esquema detallado Portaequipajes delantero y Montaje TOPE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609A010) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
