1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios
ELECTRICA/LUZ DE LA COLA SPORTSMAN 500 W969244 (4936093609C009)
5
Despiece
Catálogo de recambios
accionado de embrague SPORTSMAN 500 W969244 (4936093609C003)
por
frontal de la carcasa SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C010)

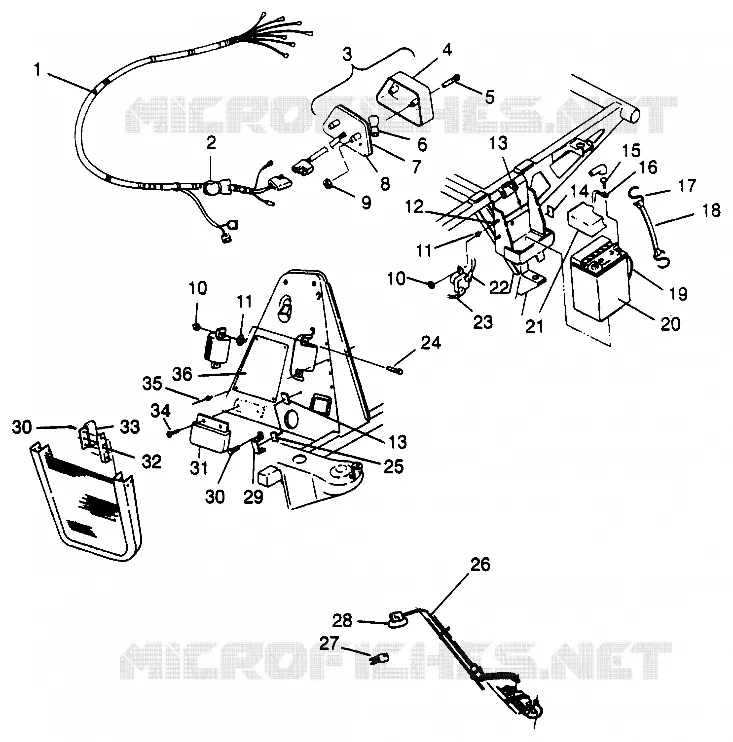

ELECTRICA/LUZ DE LA COLA SPORTSMAN 500 W969244 (4936093609C009)
1
HARNESS-MAIN WIRE
2460544
No disponible
2
Kit Breaker Circuit 20 AMP
2200593
119,90€ Precio unitario con IVA
3
ASM. TAILLIGHT [INCL. LENS AND SCREW]
2432034
No disponible
4
LENS-TAILLIGHT
4032046
61,24€ Precio unitario con IVA
5
SCREW-TAILLIGHT
4032029
8,23€ Precio unitario con IVA
6
BULB TAILLIGHT
4030043
14,09€ Precio unitario con IVA
7
GASKET TAILLIGHT
4032045
7,98€ Precio unitario con IVA
8
Backing Taillight/Brakelight
4032064
No disponible
9
SPEED NUT-WASHER HEAD-1/4
7670054
2,39€ Precio unitario con IVA
10
NUT-NYLOC 10-24 Y
7541925
1,81€ Precio unitario con IVA
11
WASHER-.197X.50 INT/EXT LK-Y
7571602
8,23€ Precio unitario con IVA
12
SCR-#10-24-5/8-PN/TORX-M
7512027
2,39€ Precio unitario con IVA
13
PAD-BATTERY NOT SHOWN
5810290
5810290-CO
18,12€ Precio unitario con IVA
14
DECAL BATTERY [No Longer Available]
7072606
No disponible
15
BOLT BATT KIT(SHORT) (Short) (Not Shown)
2200361
No disponible
16
Cable Battery/Engine
4010095
No disponible
17
Hook Strap Battery
7010032
4,67€ Precio unitario con IVA
18
STRAP BATTERY HOLDDOWN
5410424
5418182
11,71€ Precio unitario con IVA
19
TUBE-BATTERY VENT 650 MM [NOT ILLUSTRATED]
5432077
No disponible
20
BATTERY 14 AMP [FROM 8/17/2020]
4140006
109,01€ Precio unitario con IVA
21
Cover Battery
5431769
29,74€ Precio unitario con IVA
22
Cable Battery/Solenoid
4010094
No disponible
23
CABLE-21# SOL/START RED
4010093
59,95€ Precio unitario con IVA
24
BOLT
7512007
7,98€ Precio unitario con IVA
25
TAPE FOAM
8360033
No disponible
26
CLAMP BLK 5/16 PLASTIC(10)
7080524
No disponible
27
PIGTAIL POWER
2460442
No disponible
28
Plug Power
2410022
No disponible
29
BRACKET-CDI
5241416
No disponible
30
SCR-#10-24X3/4 PN/TR RD-TORX-Y (taillight) [S57C1 C9]
7512018
6,38€ Precio unitario con IVA
31
LIMITER RPM LR83 HUB GROUND Substituted by 4060205 (Hub Ground)
4060135
91,13€ Precio unitario con IVA
32
Sink Heat
5131036
No disponible
33
RECTIFIER LR-37 (400)
4060133
205,01€ Precio unitario con IVA
34
SCR-#10-24X1/2PH/TORX-TRIRD-Y
7512024
8,23€ Precio unitario con IVA
35
RIVET (50)
7621336
3,18€ Precio unitario con IVA
36
BOARD TERMINAL Substituted by 4040063
4040064
25,36€ Precio unitario con IVA

En esta página encontrará el esquema detallado ELECTRICA/LUZ DE LA COLA SPORTSMAN 500 W969244 (4936093609C009) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
