1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

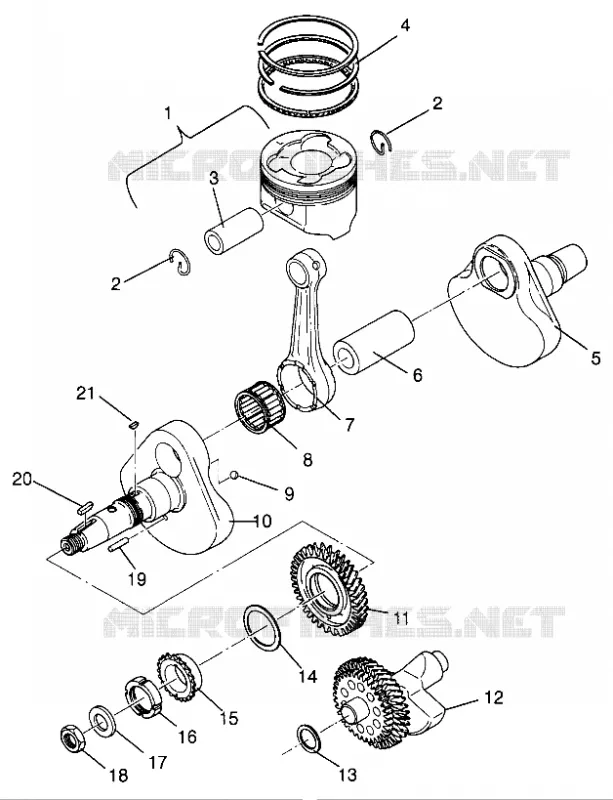

CIGUEÑAL AND PISTÓN SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S9692 (4936093609D004)
5
Despiece
Catálogo de recambios
CILINDRO SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D003)
por
ARRANQUE DE RETROCESO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D009)
CIGUEÑAL AND PISTÓN SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S9692 (4936093609D004)
-
PISTON & PIN .50MM/.020#OS Substituted by 3085868
3085403
132,70€ Precio unitario con IVA
1
PISTON & PIN .25MM/.010#OS Substituted by 3085867
3085402
132,70€ Precio unitario con IVA
1
PISTON&PIN ASM. (Std) (Incl. 1 3)
3085377
132,70€ Precio unitario con IVA
2
CIRCLIP
3084890
No disponible
3
PIN PISTON
3085378
No disponible
4
RING SET (STD) * (Std)
3085379
59,48€ Precio unitario con IVA
4
RING SET (.25MM/.010 OS) (0.25 O/S)
3085380
61,58€ Precio unitario con IVA
4
RING SET (.50MM/.020 OS) (0.50 O/S)
3085381
59,48€ Precio unitario con IVA
5
CRANKSHAFT#2 PTO SIDE
3085374
No disponible
6
PIN CRANK
3085341
127,91€ Precio unitario con IVA
7
ROD CONNECTING
3085376
No disponible
8
BEARING LARGE END Substituted by 3085343
3085400
No disponible
9
BALL STEEL
3085024
No disponible
10
CRANKSHAFT#1 MAG SIDE
3085373
No disponible
10
CRANKSHAFT ASM. (Incl. 4-10 18)
3085399
No disponible
11
GEAR BALANCER #1 Substituted by 3085852
3085401
150,22€ Precio unitario con IVA
12
SHAFT BALANCER *
3085404
No disponible
13
SPACER (1.0)
3084896
No disponible
13
SPACER (0.8)
3084895
No disponible
13
SPACER (1.2)
3084897
No disponible
14
SPACER (1.0)
3084893
No disponible
14
SPACER (1.2)
3084894
No disponible
14
SPACER
3240088
No disponible
14
SPACER (0.8)
3084892
No disponible
15
SPROCKET 1
3084882
No disponible
16
NUT SLIT
3084884
70,86€ Precio unitario con IVA
17
WASHER Substituted by 3086767
3083904
No disponible
18
LOCKNUT
3083905
No disponible
19
PIN DOWEL
3085346
No disponible
20
KEY
3081447
No disponible
21
KEY Substituted by 3081543
3080130
3081543
23,84€ Precio unitario con IVA

En esta página encontrará el esquema detallado CIGUEÑAL AND PISTÓN SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S9692 (4936093609D004) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
