1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios
CAJA DEL CIGÜEÑAL SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D002)
5
Despiece
Catálogo de recambios
CAJA DE ENGRANAJES (Cases and Snorkel) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 50 (4936093609D001)
por
CILINDRO SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609D003)

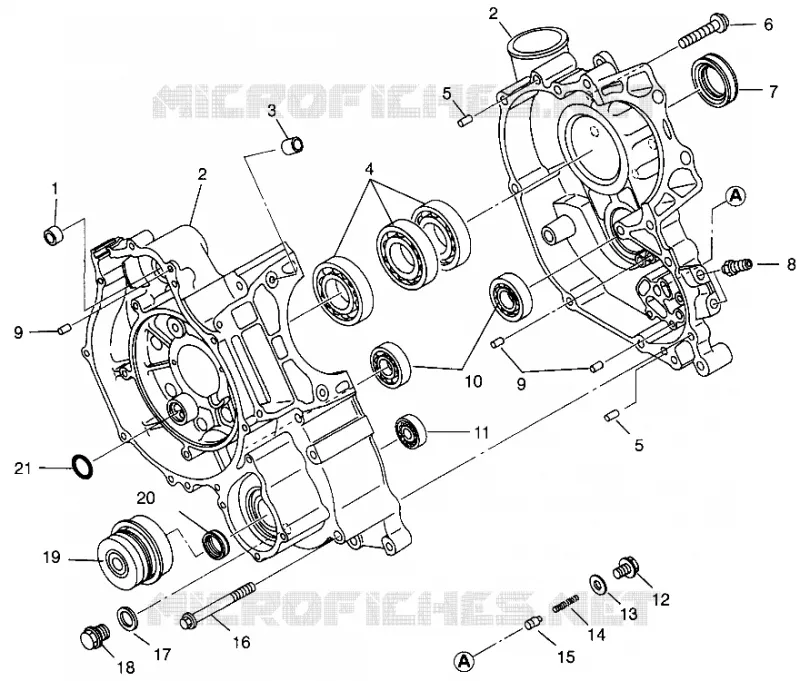

CAJA DEL CIGÜEÑAL SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D002)
1
BUSHING STARTER
3083669
No disponible
2
CRANKCASE ASM.
3085398
No disponible
3
PIN STRAIGHT
3084838
3,50€ Precio unitario con IVA
4
BEARING BALL
3080676
No disponible
5
PIN DOWEL
3084840
7,55€ Precio unitario con IVA
6
SCREW & WASHER(10)
3084205
No disponible
7
SEAL OIL
3084839
No disponible
8
UNION
3084842
24,48€ Precio unitario con IVA
9
PIN DOWEL Substituted by 3086838
3080103
7,02€ Precio unitario con IVA
10
BEARING BALL
3084834
No disponible
11
BEARING BALL
3084835
No disponible
12
Plug
3084845
No disponible
13
GASKET (ALUM.)(10)
3084846
No disponible
14
SPRING
3084844
No disponible
15
VALVE Substituted by 3086810
3084843
26,23€ Precio unitario con IVA
16
BOLT FLANGE
3084841
No disponible
17
GASKET
3082956
No disponible
18
PLUG
3086749
2,54€ Precio unitario con IVA
19
SEAL MECHANICAL
3084837
92,66€ Precio unitario con IVA
20
SEAL OIL
3084836
No disponible
21
O-RING
3084847
No disponible

En esta página encontrará el esquema detallado CAJA DEL CIGÜEÑAL SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D002) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
