1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

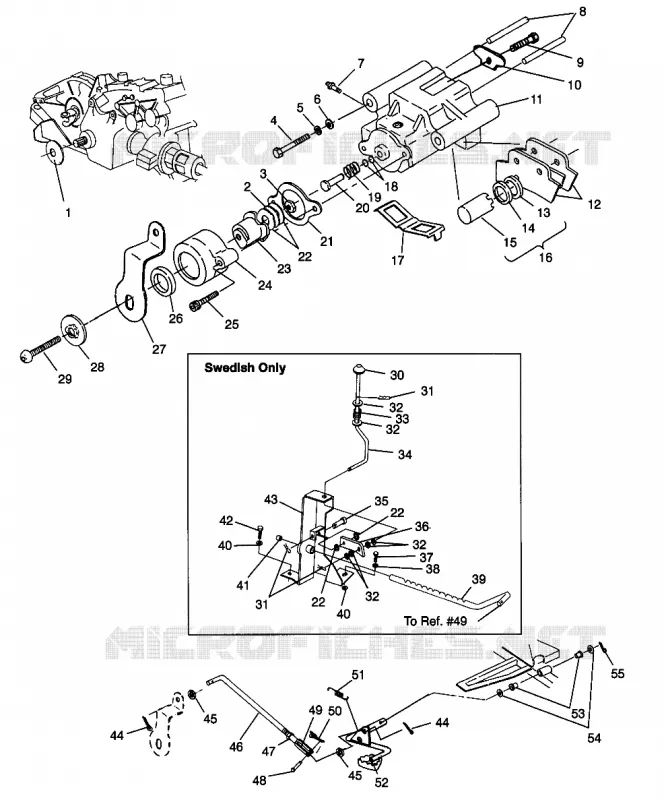

FRENO TRASERO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C007)
5
Despiece
Catálogo de recambios
SUSPENSIÓN TRASERA SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C005)
por
Tracción trasera SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C008)
FRENO TRASERO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C007)
1
DISC ASM BRAKE
1910188
No disponible
2
WASHER-.25X.50X.030 DELRIN
7555921
No disponible
3
NUT LH(10)
7542149
No disponible
4
BOLT(10)
7515345
No disponible
5
WASHER-5/16 SPRING LK-MED-Y
7552901
2,39€ Precio unitario con IVA
6
WASHER-.344X.688X.063 FL-Y
7558402
1,81€ Precio unitario con IVA
7
BLEEDER SCREW 4WD
7080352
6,38€ Precio unitario con IVA
8
PIN DOWEL(10)
7661820
No disponible
9
SCREW SEMS(10)
7512020
No disponible
10
PLATE BRAKE CALIPER
5211668
No disponible
11
CALIPER R.BRAKE MACH
5131260
336,59€ Precio unitario con IVA
11
CALIPER ASM R.BRAKE Substituted by 1910225
1910201
275,39€ Precio unitario con IVA
12
KIT BRAKEPAD REAR (Incl. Pins)
2200464
62,99€ Precio unitario con IVA
13
SQUARE RING-MOLDED (.134)
5410766
17,88€ Precio unitario con IVA
14
RING SQUARE (1##DIAM.) Substituted by 2200463
5410767
2200463
160,63€ Precio unitario con IVA
15
PISTON BRAKE Substituted by 2200463
5020667
No disponible
16
KIT PISTON&SEAL (Incl. 6 - 8)
2200463
160,63€ Precio unitario con IVA
17
SPRING ANTI-RATTLE
5240993
No disponible
18
O RING-.364X.504X.07
5410542
5411432
8,23€ Precio unitario con IVA
19
SPRING BRAKE COMP.
7041219
No disponible
20
PIN BRAKE CALIPER
5020791
No disponible
21
GASKET BRAKE
5830009
No disponible
22
WASHER-.5X.262X.06(16 GA)-Y
7555827
7,98€ Precio unitario con IVA
23
RAMP MOVE.BRAKE Substituted by 2200906
5630538
75,94€ Precio unitario con IVA
24
RAMP STAT.BRAKE Substituted by 2200905
5630457
20,99€ Precio unitario con IVA
25
SCREW(10)
7512173
No disponible
26
SEAL BRAKE
3610026
No disponible
27
ARM BRAKE CALIPER
5241458
No disponible
28
WASHER(10)
7571632
No disponible
29
BOLT LH SOC/HD.
7515160
No disponible
30
PUSHNUT RED(10)
7670063
No disponible
31
PIN COTTER(10)
7661010
1,91€ Precio unitario con IVA
32
WASHER FLAT
7558201
8,23€ Precio unitario con IVA
33
SPRING
7041365
No disponible
34
ROD BRAKE LOCK
5224759
No disponible
35
PIN CLEVIS
7661014
No disponible
36
PAWL BRAKE SWEDISH (SWED)
5241794
No disponible
37
SCREW
7512283
7,98€ Precio unitario con IVA
38
NUT(10)
7542124
7542122
2,39€ Precio unitario con IVA
39
ROD RATCHET
5241795
No disponible
40
WASHER-FL .281X.750X.062-Y
7555859
2,39€ Precio unitario con IVA
41
BUSHING OPEN/CLOSE(10)
7080399
No disponible
41
DESC NOT_AVAILABLE (US)
5432489
No disponible
42
SCR-TFHFL-1/4-20X0.75 CHS ZY3
7512232
2,39€ Precio unitario con IVA
43
DESC NOT_AVAILABLE (SWED)
1910218067
No disponible
44
PIN COTTER
7661203
2,39€ Precio unitario con IVA
45
WASHER
7555806
1,81€ Precio unitario con IVA
46
BRAKE ASM LINK.ROD (Incl. 49-46)
1910208
No disponible
46
ROD BRAKE Substituted by 1910208
5224648
40,24€ Precio unitario con IVA
47
NUT-M6X1 HX R.HAND-Y
7546701
7,98€ Precio unitario con IVA
48
PIN-CLEVIS 1/4 X 3/4 -Y
7661843
4,79€ Precio unitario con IVA
49
CLEVIS THREADED
7080545
9,89€ Precio unitario con IVA
50
PIN COTTER(10)
7661103
No disponible
51
SPRING EXHAUST(10)
7042031
7041687
12,07€ Precio unitario con IVA
52
BRAKE FOOT BLK
1910190067
No disponible
53
BUSHING-PEDAL PIVOT
5431107
13,12€ Precio unitario con IVA
54
WASHER-.510X.840X.031 Y
7555919
7,98€ Precio unitario con IVA
55
PIN COTTER
7661401
1,81€ Precio unitario con IVA

En esta página encontrará el esquema detallado FRENO TRASERO SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609C007) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
