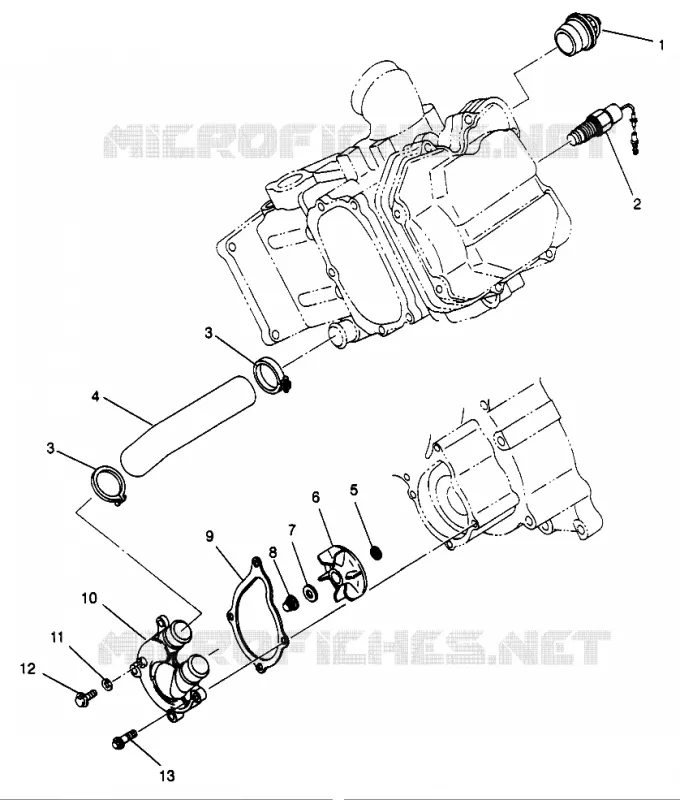

BOMBA DE AGUA SPORTSMAN 500 W969244 (4936093609D005)
5
Despiece
Catálogo de recambios
CAJA DE ENGRANAJES (Internal Components) SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN (4936093609C013)
por
BOMBA DE COMBUSTIBLE SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D006)
BOMBA DE AGUA SPORTSMAN 500 W969244 (4936093609D005)
1
THERMOSTAT *
3084940
No disponible
2
SWITCH THERMO. *
3085352
No disponible
3
CLAMP HOSE Substituted by 3086774
3084191
No disponible
4
HOSE MAIN Substituted by 3085857
3084938
39,88€ Precio unitario con IVA
5
WASHER SEAL
3084942
No disponible
6
IMPELLER WATER PUMP
3084935
No disponible
7
WASHER(10) Substituted by 7555998
3083138
7555998
2,39€ Precio unitario con IVA
8
NUT SELF-LOCK
3085077
No disponible
9
GASKET WATER PUMP Substituted by 3086840
3084937
3,98€ Precio unitario con IVA
10
COVER WATER PUMP
3085351
No disponible
11
GASKET ALUM (10) Substituted by 7555998
3082758
7555998
2,39€ Precio unitario con IVA
12
BOLT FLANGE
3085359
No disponible
13
BOLT FLANGE(10)
3084877
No disponible

En esta página encontrará el esquema detallado BOMBA DE AGUA SPORTSMAN 500 W969244 (4936093609D005) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
