1
Cilindrada
500
2
Año
1996
3
Acabado
SWEDISH SPORTSMAN 500 - S969244
4
Catálogo de recambios

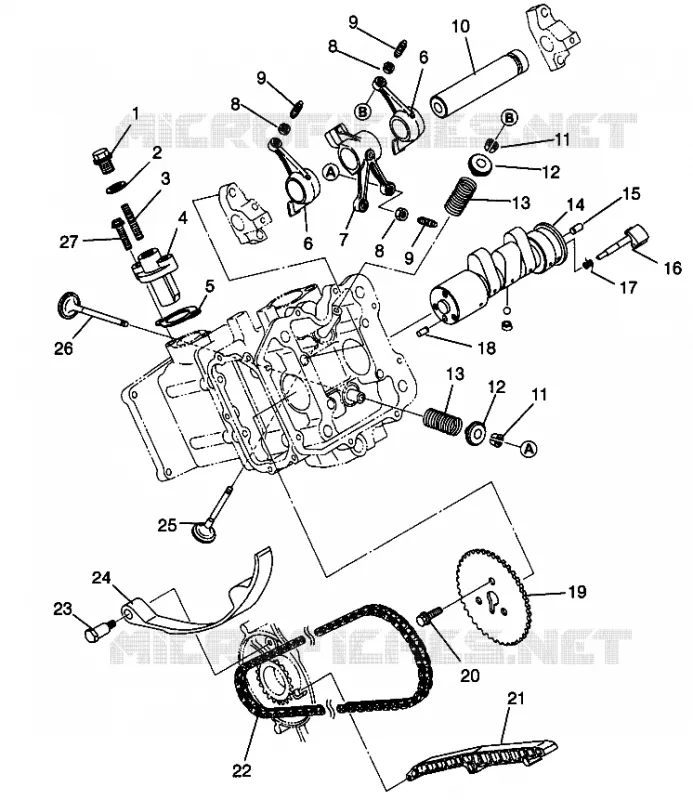

ESCAPE DE ADMISION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D014)
5
Despiece
Catálogo de recambios
FILTRO DE ACEITE SPORTSMAN 500 W969244 (4936093609D008)
por
ESCAPE DE ADMISION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D014)
1
Plug
3084845
No disponible
2
Gasket Plug
3084920
No disponible
3
SPRING TENSIONER
3084919
No disponible
4
TENSIONER ASM. (Incl. 5-7)
3084918
197,36€ Precio unitario con IVA
5
Gasket Tensioner
3084922
No disponible
6
Asm. Rocker Arm Intake [Incl. 8 9]
3084910
No disponible
7
Asm. Rocker Arm Exhaust [Incl. 8 9]
3084913
No disponible
8
NUT
3084912
No disponible
9
Screw Adjusting
3084911
No disponible
10
Shaft Rocker
3084909
No disponible
11
Collet Valve
3084908
No disponible
12
RETAINER SPRING Substituted by 3086893
3084907
5,10€ Precio unitario con IVA
13
Spring Valve
3084906
21,68€ Precio unitario con IVA
14
CAMSHAFT Substituted by 3086212 (Incl. 17-20)
3084898
358,86€ Precio unitario con IVA
15
PIN DOWEL Substituted by 3086838
3080103
7,02€ Precio unitario con IVA
16
Lever Release
3085348
No disponible
17
Spring Return
3085076
No disponible
18
Pin Dowel
3084899
No disponible
19
Sprocket 2
3084914
No disponible
20
BOLT&WASHER ASM.
3081657
No disponible
21
Guide Chain
3084916
No disponible
22
Chain Timing
3084915
No disponible
23
Bolt Pivot
3084924
No disponible
24
Lever
3084917
No disponible
25
Valve Intake
3085349
No disponible
26
VALVE EXHAUST Substituted by 3085412
3084905
90,11€ Precio unitario con IVA
27
Bolt Flange
3084874
No disponible

En esta página encontrará el esquema detallado ESCAPE DE ADMISION SPORTSMAN 500 W969244 and SWEDISH SPORTSMAN 500 S969244 (4936093609D014) POLARIS. Esta vista explosionada permite identificar los diferentes componentes que necesita para mantener su máquina y encontrar rápidamente su referencia de pieza original POLARIS.


Los esquemas no son contractuales. En caso de duda, nuestros profesionales están disponibles para responder a sus preguntas. Al añadir una pieza al carrito, asegúrese de solicitar la cantidad deseada. El precio unitario indicado corresponde al precio de cada referencia para una cantidad de 1.
